STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC

STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC
STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC

Large Image :  STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32L151C8T6
Document: 1457706595168.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC

Description
Product Category:: MCU Maximum Clock Frequency:: 32MHz
Data Bus Width:: 32 Bit Program Memory Size:: 64KB
Program Memory Type:: FLASH Data RAM Size:: 10KB
Number Of I/Os:: 37
Highlight:

STM32L151C8T6 ultra-low-power MCU

,

ARM Cortex-M3 microcontroller 128KB Flash

,

32-bit MCU with LCD USB

STM32L151C8T6 Ultra-low-power 32-bit MCU
ARM Cortex-M3 based microcontroller with 128KB Flash, 16KB SRAM, 4KB EEPROM, LCD controller, USB, ADC, and DAC interfaces.
Key Features
Ultra-low-power Platform
  • 1.65V to 3.6V power supply range
  • -40°C to 85°C/105°C temperature range
  • 0.3 µA Standby mode (3 wakeup pins)
  • 0.9 µA Standby mode with RTC
  • 0.57 µA Stop mode (16 wakeup lines)
  • 1.45 µA Stop mode with RTC
  • 9 µA Low-power Run mode
  • 214 µA/MHz Run mode
  • 10 nA ultra-low I/O leakage
  • < 8 µs wakeup time
Core Architecture
  • ARM 32-bit Cortex-M3 CPU
  • 32 kHz to 32 MHz operating frequency
  • 33.3 DMIPS peak performance (Dhrystone 2.1)
  • Memory protection unit
Power Management
  • Ultra-safe, low-power BOR with 5 selectable thresholds
  • Ultra-low-power POR/PDR
  • Programmable voltage detector (PVD)
Clock System
  • 1 to 24 MHz crystal oscillator
  • 32 kHz oscillator for RTC with calibration
  • High Speed Internal 16 MHz factory-trimmed RC (±1%)
  • Internal Low Power 37 kHz RC
  • Internal multispeed low power 65 kHz to 4.2 MHz
  • PLL for CPU clock and USB (48 MHz)
Development & I/O
  • Pre-programmed bootloader with USART support
  • Serial wire debug support
  • JTAG and trace support
  • Up to 83 fast I/Os (73 I/Os 5V tolerant)
  • All I/Os mappable on 16 external interrupt vectors
Product Family Reference
Reference Part Numbers
STM32L151xx STM32L151CB, STM32L151C8, STM32L151C6, STM32L151RB, STM32L151R8, STM32L151R6, STM32L151VB, STM32L151V8
STM32L152xx STM32L152CB, STM32L152C8, STM32L152C6, STM32L152RB, STM32L152R8, STM32L152R6, STM32L152VB, STM32L152V8

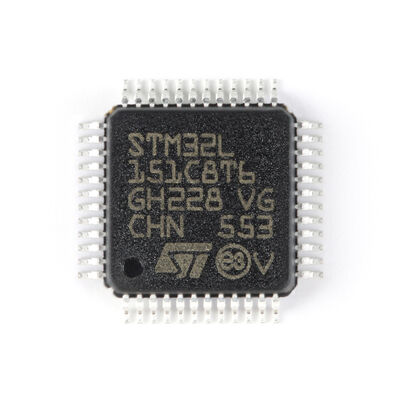

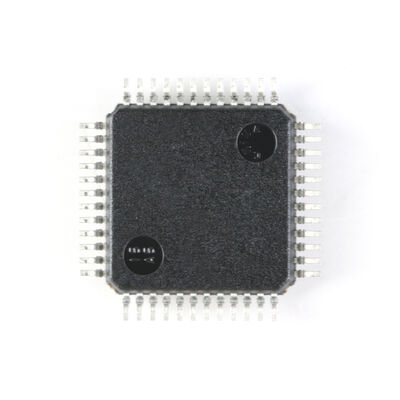

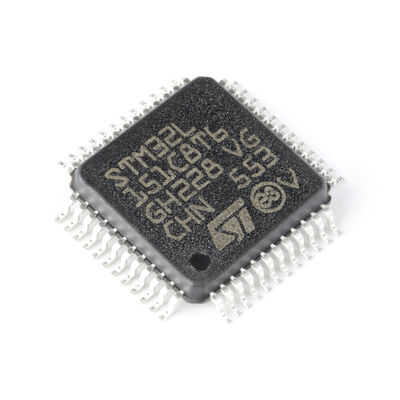

Product Images
STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC 0 STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC 1 STM32L151C8T6 Ultra-low-power 32-bit MCU ARM-based Cortex-M3 128KB Flash 16KB SRAM 4KB EEPROM LCD USB ADC DAC 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
