STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces

STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces
STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces

Large Image :  STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F107VCT6
Document: 1457707161919.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 256KB
Program Memory Type:: FLASH Data RAM Size:: 64KB
Number Of I/Os:: 80
Highlight:

STM32F107VCT6 ARM microcontroller with USBOTG

,

32-bit MCU with Ethernet and CAN

,

STM32F107VCT6 microcontroller with 256KB Flash

STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU
High-performance 32-bit microcontroller with 64/256 KB Flash, USB OTG, Ethernet, 10 timers, 2 CAN interfaces, 2 ADCs, and 14 communication interfaces.
Key Features
  • Core: ARM® 32-bit Cortex®-M3 CPU
    • 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
    • Single-cycle multiplication and hardware division
  • Memories:
    • 64 to 256 Kbytes of Flash memory
    • 64 Kbytes of general-purpose SRAM
  • Clock, Reset and Supply Management:
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR, and programmable voltage detector (PVD)
    • 3-to-25 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
    • Internal 40 kHz RC with calibration
    • 32 kHz oscillator for RTC with calibration
  • Low Power: Sleep, Stop and Standby modes with VBAT supply for RTC and backup registers
  • Analog Interfaces:
    • 2 × 12-bit, 1 µs A/D converters (16 channels)
    • Conversion range: 0 to 3.6 V with sample and hold capability
    • Temperature sensor
    • Up to 2 MSPS in interleaved mode
    • 2 × 12-bit D/A converters
  • DMA: 12-channel DMA controller supporting timers, ADCs, DAC, I2Ss, SPIs, I2Cs and USARTs
  • Debug Mode: Serial wire debug (SWD) & JTAG interfaces with Cortex®-M3 Embedded Trace Macrocell™
  • I/O Ports: Up to 80 fast I/O ports with 51/80 I/Os mappable on 16 external interrupt vectors, almost all 5 V-tolerant
  • Additional Features: CRC calculation unit, 96-bit unique ID
Timer Specifications
Timer Counter Resolution Counter Type Prescaler Factor DMA Request Generation Capture/Compare Channels Complementary Outputs
TIM1 16-bit Up, down, up/down Any integer between 1 and 65536 Yes 4 Yes
TIMx (TIM2, TIM3, TIM4, TIM5) 16-bit Up, down, up/down Any integer between 1 and 65536 Yes 4 No
TIM6, TIM7 16-bit Up Any integer between 1 and 65536 Yes 0 No

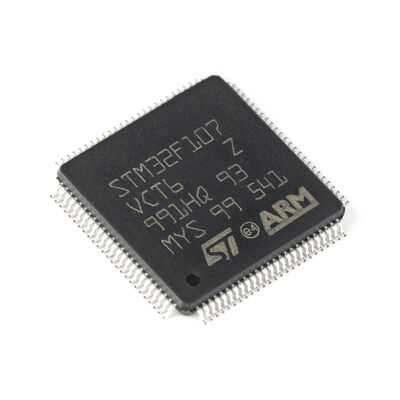

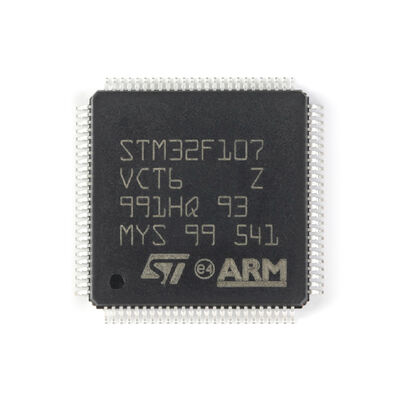

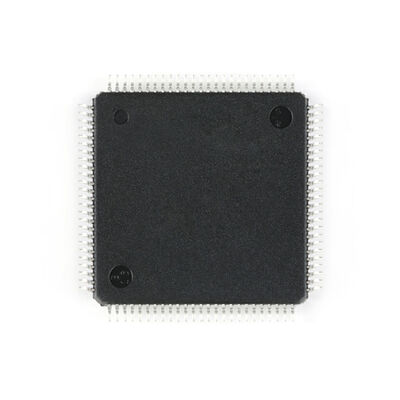

Product Images
STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces 0 STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces 1 STM32F107VCT6 Connectivity Line ARM®-based 32-bit MCU With 64/256 KB Flash USBOTG Ethernet 10 Timers 2 CANs 2 ADCs 14 Communication Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
