STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces

STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces
STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces

Large Image :  STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F103ZET6
Document: C88435_0E51D69B5FFD7B1A3F36...C2.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 512KB
Program Memory Type:: FLASH Data RAM Size:: 64KB
Number Of I/Os:: 112
Highlight:

STM32F103ZET6 32-bit MCU with USB

,

High-density ARM-based microcontroller

,

STM32F103ZET6 MCU with 512KB Flash

STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU
High-performance 32-bit microcontroller with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, and 13 communication interfaces.
Key Features
  • Core: ARM 32-bit Cortex-M3 CPU
    • 72 MHz maximum frequency, 1.25 DMIPS/MHz performance
    • Single-cycle multiplication and hardware division
  • Memories:
    • 256 to 512 Kbytes of Flash memory
    • Up to 64 Kbytes of SRAM
    • Flexible static memory controller with 4 Chip Select
    • Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
    • LCD parallel interface, 8080/6800 modes
  • Clock, Reset and Supply Management:
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR, and programmable voltage detector (PVD)
    • 4-to-16 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
    • Internal 40 kHz RC with calibration
    • 32 kHz oscillator for RTC with calibration
  • Low Power:
    • Sleep, Stop and Standby modes
    • VBAT supply for RTC and backup registers
  • Analog Peripherals:
    • 3 × 12-bit, 1 µs A/D converters (up to 21 channels)
    • Conversion range: 0 to 3.6 V
    • Triple-sample and hold capability
    • Temperature sensor
    • 2 × 12-bit D/A converters
  • DMA: 12-channel DMA controller supporting timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs
  • Debug Mode: Serial wire debug (SWD) & JTAG interfaces with Cortex-M3 Embedded Trace Macrocell
Product Variants
STM32F103xC Series STM32F103RC, STM32F103VC, STM32F103ZC
STM32F103xD Series STM32F103RD, STM32F103VD, STM32F103ZD

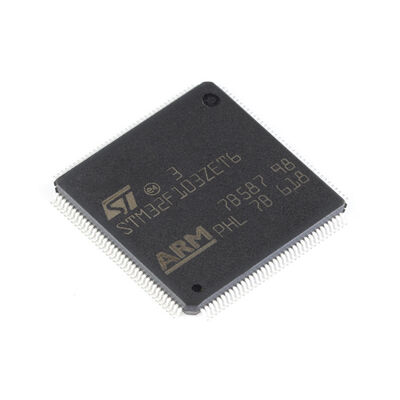

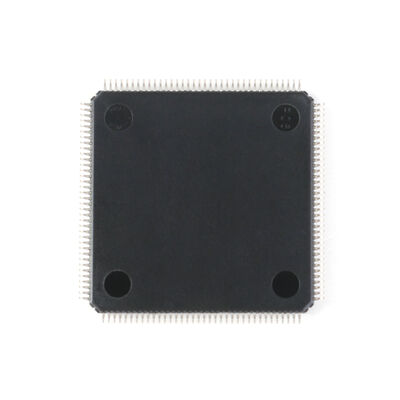

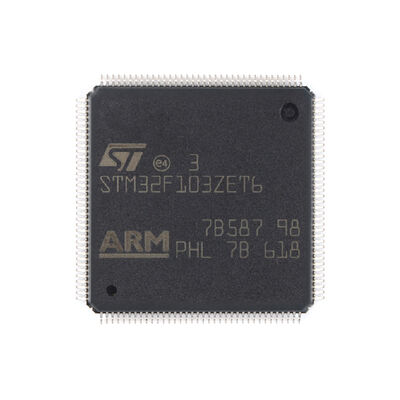

Product Images
STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces 0 STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces 1 STM32F103ZET6 High-density Performance Line ARM-based 32-bit MCU With 256 To512KB Flash USB, CAN 11 Timers 3 ADCs 13 Communication Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
