STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces
STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Large Image :  STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F103VCT6
Document: C443969_BBB78F97FCB1C210242...A0.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 256KB
Program Memory Type:: FLASH Data RAM Size:: 48KB
Number Of I/Os:: 80
Highlight:

STM32F103VCT6 32-bit MCU with USB CAN

,

High-density ARM MCU with 256KB Flash

,

STM32F103VCT6 microcontroller with 13 communication interfaces

STM32F103VCT6 High-Density Performance Line MCU
Arm®-based 32-bit microcontroller with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, and 13 communication interfaces
Key Features
  • Core: Arm® 32-bit Cortex®-M3 CPU
    • 72 MHz maximum frequency, 1.25 DMIPS/MHz performance
    • Single-cycle multiplication and hardware division
  • Memories:
    • 256 to 512 Kbytes of Flash memory
    • Up to 64 Kbytes of SRAM
    • Flexible static memory controller with 4 Chip Select
    • LCD parallel interface, 8080/6800 modes
  • Clock, Reset and Supply Management:
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR, and programmable voltage detector (PVD)
    • 4-to-16 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
  • Low Power: Sleep, Stop and Standby modes
  • Analog: 3 × 12-bit, 1 µs A/D converters (up to 21 channels), 2 × 12-bit D/A converters
  • DMA: 12-channel DMA controller
  • Debug: Serial wire debug (SWD) & JTAG interfaces
  • I/O: Up to 112 fast I/O ports, 5 V-tolerant
Timer Parameters
Symbol Parameter Conditions Min Max Unit
tres(TIM) Timer resolution time - 1 - tTIMxCLK
fTIMxCLK Timer external clock frequency fTIMxCLK = 72 MHz 13.9 - ns
fEXTTimer External clock frequency on CH1 to CH4 - 0 fTIMxCLK/2 MHz MHz
ResTIM Timer resolution - - 16 bit

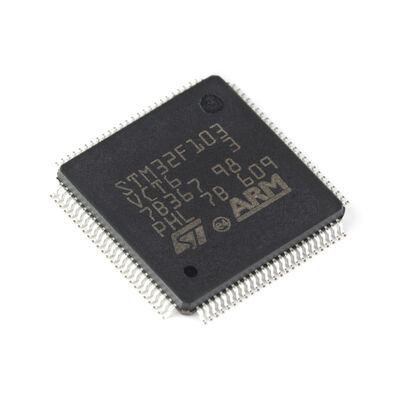

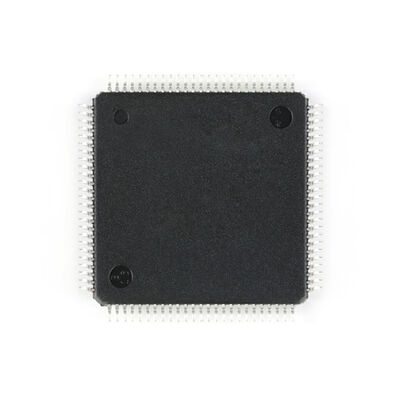

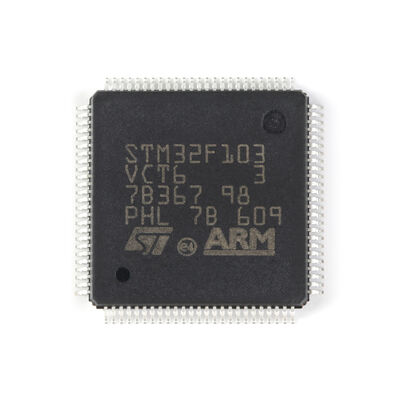

Product Images
STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 0 STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 1 STM32F103VCT6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
