STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces
STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Large Image :  STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F103RET6
Document: C443969_BBB78F97FCB1C210242...1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 512KB
Program Memory Type:: FLASH Data RAM Size:: 64KB
Number Of I/Os:: 51
Highlight:

STM32F103RET6 32-bit MCU with USB

,

High-density ARM MCU with CAN interface

,

STM32F103RET6 microcontroller with 512KB Flash

STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU
High-performance 32-bit microcontroller with 256 to 512KB Flash memory, featuring USB, CAN interfaces, 11 timers, 3 ADCs, and 13 communication interfaces.
Key Features
  • Core Processor: Arm® 32-bit Cortex®-M3 CPU operating at 72 MHz maximum frequency
  • Performance: 1.25 DMIPS/MHz (Dhrystone 2.1) performance with single-cycle multiplication and hardware division
  • Memory Configuration: 256 to 512 Kbytes of Flash memory with up to 64 Kbytes of SRAM
  • Memory Support: Flexible static memory controller with 4 Chip Select supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
  • Display Interface: LCD parallel interface with 8080/6800 modes
  • Power Management: 2.0 to 3.6 V application supply with POR, PDR, and programmable voltage detector (PVD)
  • Clock System: 4-to-16 MHz crystal oscillator, internal 8 MHz factory-trimmed RC, and internal 40 kHz RC with calibration
  • Low Power Modes: Sleep, Stop and Standby modes with VBAT supply for RTC and backup registers
  • Analog Conversion: 3 × 12-bit, 1 µs A/D converters (up to 21 channels) with triple-sample and hold capability and temperature sensor
  • Digital Conversion: 2 × 12-bit D/A converters
  • DMA Controller: 12-channel DMA supporting timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs
  • Debug Capabilities: Serial wire debug (SWD) & JTAG interfaces with Cortex®-M3 Embedded Trace Macrocell™
  • I/O Ports: Up to 112 fast I/O ports (51/80/112 I/Os) all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Reference Part Numbers
STM32F103xC STM32F103RC STM32F103VC STM32F103ZC
STM32F103xD STM32F103RD STM32F103VD STM32F103ZD
STM32F103xE STM32F103RE STM32F103ZE STM32F103VE

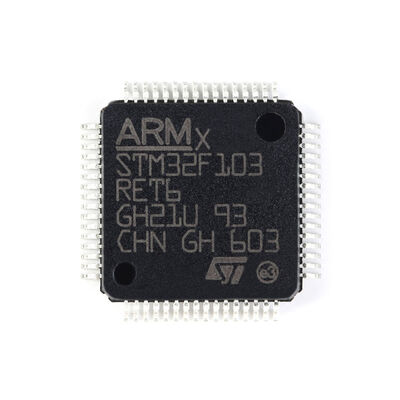

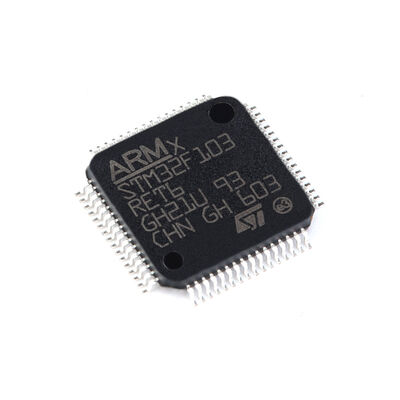

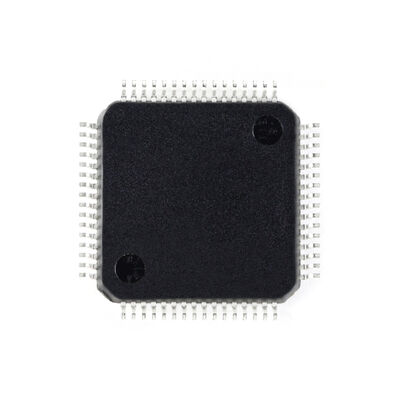

Product Images
STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 0 STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 1 STM32F103RET6 High-density Performance Line Arm®-based 32-bit MCU With 256 To 512KBFlash USB CAN 11 Timers 3 ADCs 13 Communication Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
