STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces

STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces
STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces

Large Image :  STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F103R8T6
Document: 1457707344439 (3).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 64KB
Program Memory Type:: FLASH Data RAM Size:: 20KB
Number Of I/Os:: 51
Highlight:

STM32F103R8T6 ARM MCU with USB CAN

,

32-bit microcontroller with 128KB Flash

,

Medium-density MCU with 7 timers

STM32F103R8T6 Medium-Density Performance Line ARM-Based 32-bit MCU
64 KB or 128 KB Flash, USB, CAN, 7 Timers, 2 ADCs, 9 Communication Interfaces
Product Overview
The STM32F103R8T6 is a medium-density performance line ARM-based 32-bit microcontroller featuring high processing power, extensive memory options, and rich peripheral integration for industrial and embedded applications.
Key Features
  • ARM 32-bit Cortex-M3 CPU Core
    • 72 MHz maximum frequency
    • 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
    • Single-cycle multiplication and hardware division
  • Memory Configuration
    • 64 or 128 Kbytes of Flash memory
    • 20 Kbytes of SRAM
  • Clock, Reset and Supply Management
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR, and programmable voltage detector (PVD)
    • 4-to-16 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
    • Internal 40 kHz RC
    • PLL for CPU clock
    • 32 kHz oscillator for RTC with calibration
  • Low Power Operation
    • Sleep, Stop and Standby modes
    • VBAT supply for RTC and backup registers
  • Analog-to-Digital Conversion
    • 2 x 12-bit, 1 µs A/D converters (up to 16 channels)
    • Conversion range: 0 to 3.6 V
    • Dual-sample and hold capability
    • Temperature sensor
  • Direct Memory Access
    • 7-channel DMA controller
    • Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
  • I/O Capabilities
    • Up to 80 fast I/O ports
    • 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors
    • Almost all 5 V-tolerant
Part Number Reference
Reference Part Number
STM32F103x8 STM32F103C8, STM32F103R8, STM32F103V8, STM32F103T8
STM32F103xB STM32F103RB, STM32F103VB, STM32F103CB, STM32F103TB

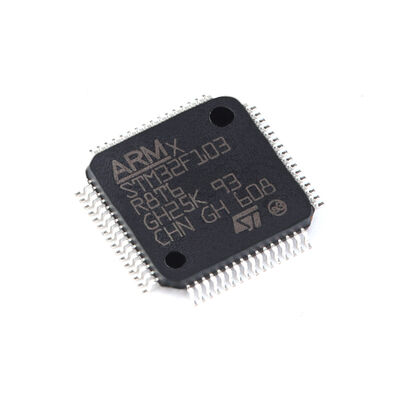

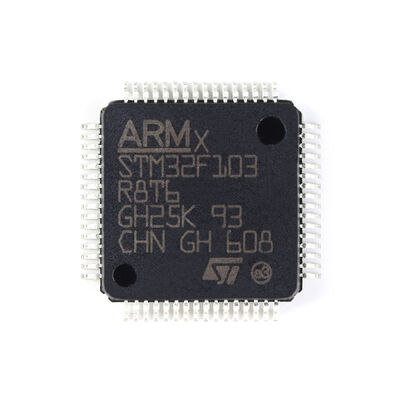

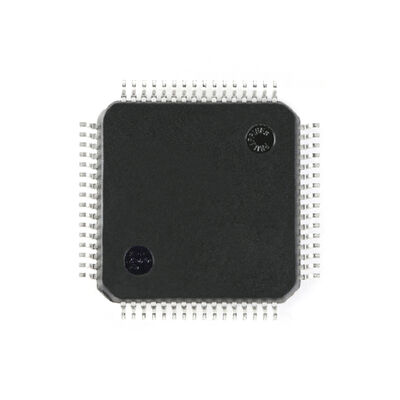

Product Images
STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces 0 STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces 1 STM32F103R8T6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9com Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
