STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces

STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces
STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces

Large Image :  STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F411CEU6
Document: 1457707507170.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 100MHz
Data Bus Width:: 32 Bit Program Memory：: 512KB
Program Memory Type:: FLASH Data RAM Size:: 128KB
Number Of I/Os:: 36
Highlight:

STM32F411CEU6 microcontroller with USB OTG

,

ARM Cortex-M4 MCU 512KB flash

,

32-bit microcontroller 128KB RAM

STM32F411CEU6 ARM® Cortex®-M4 32-bit MCU
High-performance microcontroller with FPU, 125 DMIPS, 512KB Flash, 128KB RAM, USB OTG FS, 11 timers, 1 ADC, and 13 communication interfaces.
Product Features
  • Dynamic Efficiency Line with Batch Acquisition Mode (BAM)
  • ARM® 32-bit Cortex®-M4 CPU with FPU
  • Adaptive real-time accelerator for 0-wait state execution from Flash memory
  • Operating frequency up to 100 MHz
  • Memory protection unit
  • 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
  • DSP instructions
Memory Specifications
  • Up to 512 KB of Flash memory
  • 128 KB of SRAM
Clock, Reset and Supply Management
  • 1.7 V to 3.6 V application supply and I/Os
  • POR, PDR, PVD and BOR
  • 4-to-26 MHz crystal oscillator
  • Internal 16 MHz factory-trimmed RC
  • 32 kHz oscillator for RTC with calibration
  • Internal 32 kHz RC with calibration
Power Consumption
  • Run: 100 µA/MHz (peripheral off)
  • Stop (Flash in Stop mode): 42 µA Typ @ 25°C; 65 µA max @25°C
  • Stop (Flash in Deep power down mode): down to 10 µA @ 25°C; 30 µA max @25°C
  • Standby: 2.4 µA @25°C / 1.7 V without RTC; 12 µA @85°C @1.7 V
  • VBAT supply for RTC: 1 µA @25°C
Reference Part Numbers
Series Available Variants
STM32F411xC STM32F411CC, STM32F411RC, STM32F411VC
STM32F411xE STM32F411CE, STM32F411RE, STM32F411VE

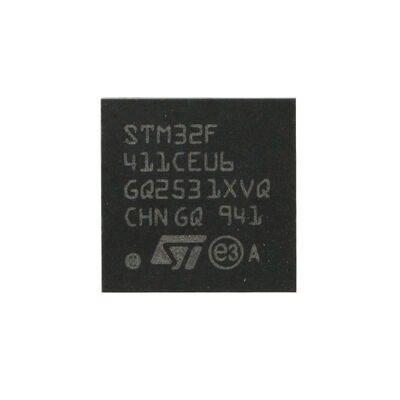

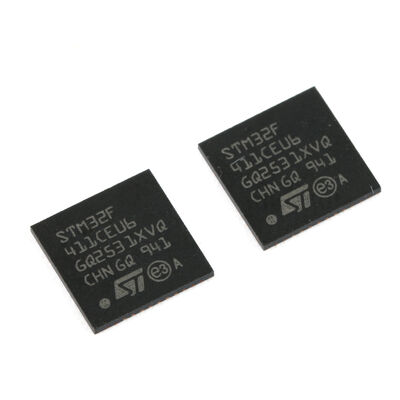

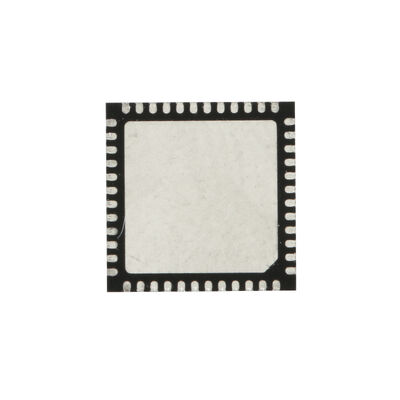

Product Images
STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces 0 STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces 1 STM32F411CEU6 ARM® Cortex®-M4 32b MCU+FPU125 DMIPS512KB Flash128KB RAM, USB OTG FS 11TIMs1 ADC13 Comminterfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
