GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB

GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB

Large Image :  GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32F307VCT6
Document: C2841481_C82675E64E75437BF7...18.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB

Description
Product Category:: MCU Maximum Clock Frequency:: -
Data Bus Width:: 32 Bit Maximum CPU Operating Frequency: 120MHz
Program Memory Type:: FLASH Data RAM Size:: 256KB
Number Of I/Os:: 80
Highlight:

GD32F307VCT6 ARM Cortex-M4 MCU

,

32-bit microcontroller 120MHz

,

256KB flash memory MCU

GD32F307VCT6 ARM Cortex-M4 32-bit MCU

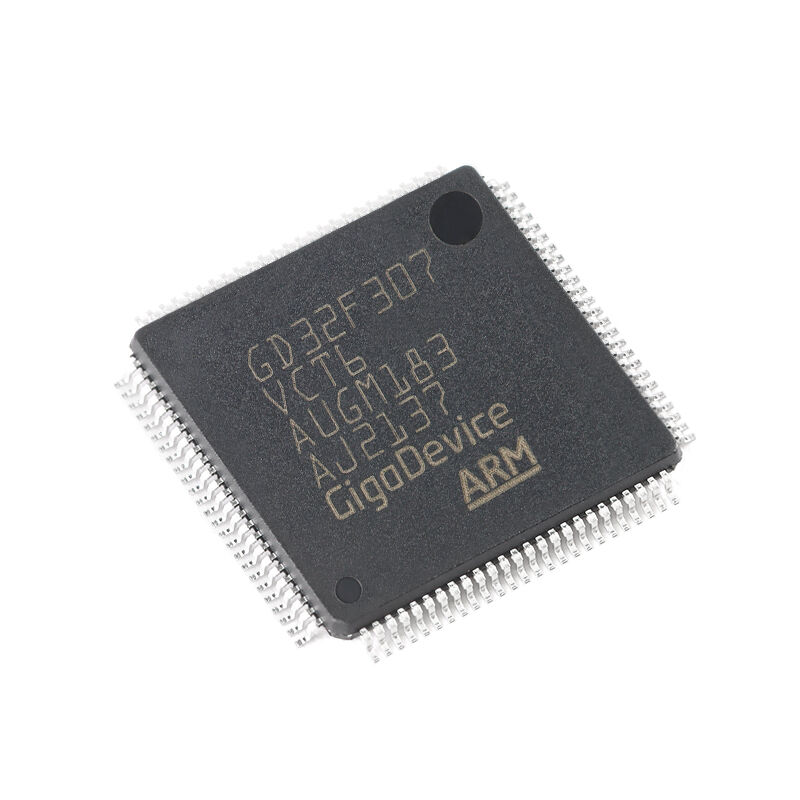

The GD32F307VCT6 features an ARM® Cortex®-M4 32-bit processor core operating at 120 MHz frequency with zero wait state Flash access for maximum efficiency. This microcontroller provides 256 KB on-chip Flash memory and extensive peripheral connectivity.
Key Features
  • ARM Cortex-M4 32-bit processor core at 120 MHz
  • 256 KB Flash memory with zero wait state access
  • Up to 1024 KB Flash and 96 KB SRAM memory options
  • Two 12-bit 2.6 MSPS ADCs and two 12-bit DACs
  • Advanced timer system: ten general 16-bit timers, two 16-bit PWM advanced timers, two 16-bit basic timers
  • Comprehensive communication interfaces: three SPIs, two I2Cs, three USARTs, two UARTs, two I2Ss, two CANs, USBFS, and ENET
  • Operating voltage: 2.6V to 3.6V
  • Temperature range: -40°C to +85°C
  • Multiple power saving modes for low power applications
Electrical Specifications
Symbol Parameter Conditions Min Max Unit
fHCLK AHB clock frequency -- -- 120 MHz
fAPB1 APB1 clock frequency -- -- 60 MHz
fAPB2 APB2 clock frequency -- -- 120 MHz
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB 0 GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB 1 GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB 2
