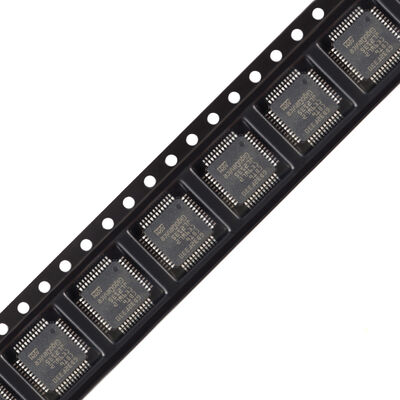

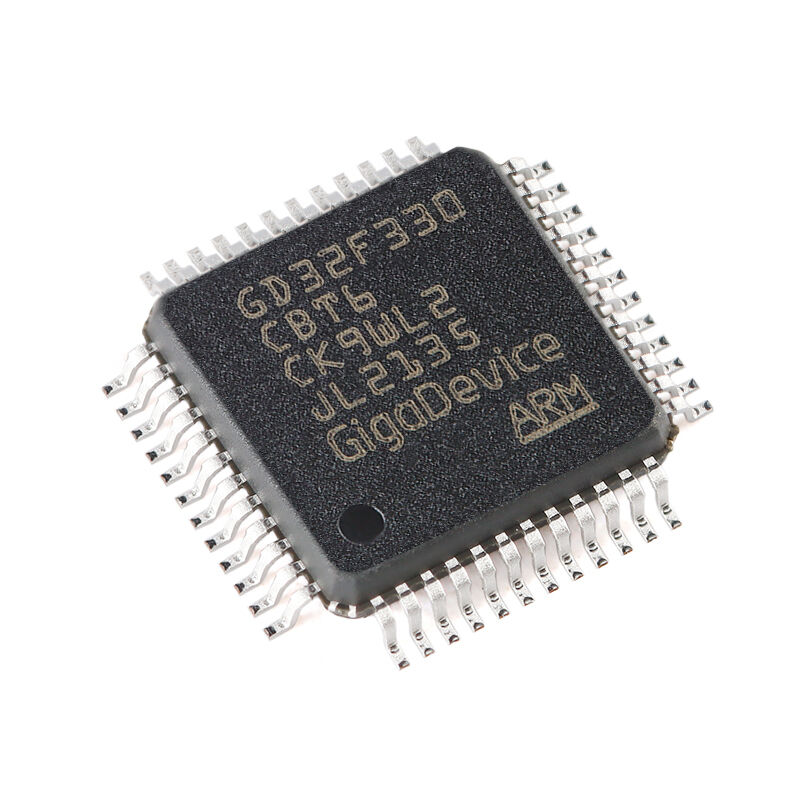

GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB

GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB
GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB

Large Image :  GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32F330CBT6
Document: C182133_1519697740609137014...41.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB

Description
Product Category:: MCU Maximum Clock Frequency:: -
Data Bus Width:: 32 Bit Maximum CPU Operating Frequency: 84MHz
Program Memory Type:: FLASH Data RAM Size:: 64KB
Number Of I/Os:: 39
Highlight:

GD32F330CBT6 Cortex-M4 MCU

,

32-bit microcontroller 84MHz

,

ARM MCU with 64KB flash

GD32F330CBT6 ARM Cortex-M4 32-bit MCU
The GD32F330CBT6 features an ARM® Cortex®-M4 32-bit processor core operating at 84 MHz frequency with zero wait state Flash access for maximum efficiency. This microcontroller provides up to 128 KB on-chip Flash memory and up to 16 KB SRAM memory, supported by an extensive range of enhanced I/Os and peripherals connected to two APB buses.
Key Features
  • ARM Cortex-M4 32-bit processor core at 84 MHz
  • Up to 128 KB Flash memory and 16 KB SRAM
  • One 12-bit ADC converter
  • Five general-purpose 16-bit timers plus one 32-bit timer
  • PWM advanced-control timer
  • Communication interfaces: Two SPIs, Two I2Cs, Two USARTs
  • Operating voltage: 2.6V to 3.6V
  • Temperature range: -40°C to +85°C
  • Multiple power saving modes for low power applications
Electrical Parameters
Symbol Parameter Min Max Unit
VDD External voltage range VSS - 0.3 VSS + 3.6 V
VDDA External analog supply voltage VSSA - 0.3 VSSA + 3.6 V
VBAT External battery supply voltage VSS - 0.3 VSS + 3.6 V
VIN Input voltage on 5V tolerant pin VSS - 0.3 VDD + 4.0 V
VIN Input voltage on other I/O VSS - 0.3 4.0 V
|ΔVDDx| Variations between different VDD power pins -- 50 mV
|VSSX −VSS| Variations between different ground pins -- 50 mV
IIO Maximum current for GPIO pins -- 25 mA
TA Operating temperature range -40 +85 °C
TSTG Storage temperature range -55 +150 °C
TJ Maximum junction temperature -- 125 °C
Product Documentation
GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB 0 GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB 1 GD32F330CBT6 ARM Cortex-M4 32-bit MCU 84MHz 64KB 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
