GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core

GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core
GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core

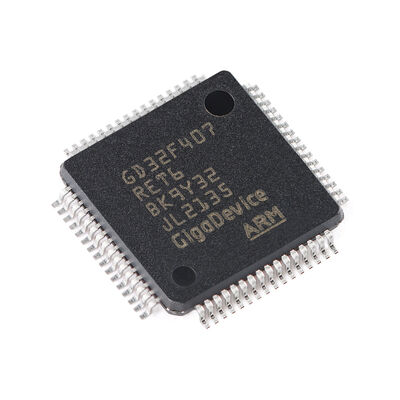

Large Image :  GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32F407RET6
Document: C2688748_F0C6B64EEEDC376822...65.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core

Description
Product Category:: MCU Max Speed (MHz): 168MHz
Flash (Bytes): 512KB ADC: 12bit
DAC: 12bit Operating Voltage: 2.6V~3.6V
Operating Voltage: 2.6V~3.6V Number Of I/Os:: 51

GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core

Ordering code Flash (KB) Package Package type Temperature operating range
GD32F407RET6 512 LQFP64 Green Industrial -40°C to +85°C
GD32F407RGT6 1024 LQFP64 Green Industrial -40°C to +85°C
GD32F407RKT6 3072 LQFP64 Green Industrial -40°C to +85°C
GD32F407VET6 512 LQFP100 Green Industrial -40°C to +85°C
GD32F407VGT6 1024 LQFP100 Green Industrial -40°C to +85°C
GD32F407VKT6 3072 LQFP100 Green Industrial -40°C to +85°C
GD32F407VEH6 512 BGA100 Green Industrial -40°C to +85°C
GD32F407VGH6 1024 BGA100 Green Industrial -40°C to +85°C
GD32F407VKH6 3072 BGA100 Green Industrial -40°C to +85°C
GD32F407ZET6 512 LQFP144 Green Industrial -40°C to +85°C
GD32F407ZGT6 1024 LQFP144 Green Industrial -40°C to +85°C
GD32F407ZKT6 3072 LQFP144 Green Industrial -40°C to +85°C
GD32F407IEH6 512 BGA176 Green Industrial -40°C to +85°C
GD32F407IGH6 1024 BGA176 Green Industrial -40°C to +85°C
GD32F407IKH6 3072 BGA176 Green Industrial -40°C to +85°C

Key Features

  • Digital video/picture capture
  • 8/10/12/14 data width supported
  • High transfer efficiency with DMA interface
  • Video/picture crop supported
  • Various pixel formats supported including JPEG/YCrCb/RGB
  • Hard/embedded synchronous signals supported
GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core 0GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core 1GD32F407RET6 ARM Cortex-M4 MCU 32-bit General-purpose Microcontroller Based On The ARM Cortex-M4 RISC Core 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
