GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core

GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core
GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core

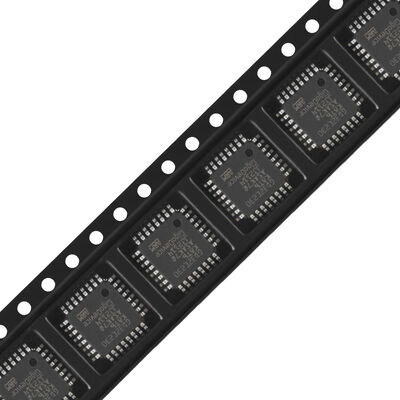

Large Image :  GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32E230K8T6
Document: C712540_5D62A0BE996B6966939...0F.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core

Description
Product Category:: MCU Max Speed (MHz): 72MHz
Flash (Bytes): 64KB ADC: 12bit
DAC: 12bit Operating Voltage: 1.8V~3.6V
Number Of I/Os:: 25
Highlight:

GD32E230K8T6 ARM Cortex-M23 microcontroller

,

32-bit general-purpose microcontroller with Cortex-M23

,

MCU microcontroller unit with ARM core

GD32E230K8T6 ARM Cortex-M23 32-bit Microcontroller
The GD32E230K8T6 is a 32-bit general-purpose microcontroller based on the ARM® Cortex®-M23 core, designed for energy-efficient embedded applications requiring optimized performance and minimal power consumption.
Processor Core Features
  • ARM® Cortex®-M23 32-bit processor core
  • Operating frequency up to 72 MHz
  • Single-cycle multiplication and hardware divider
  • Ultra-low power consumption for energy-efficient operation
  • Excellent code density with Thumb and Thumb-2 instruction set support
  • Integrated Nested Vectored Interrupt Controller (NVIC)
  • 24-bit SysTick timer
System Architecture
Based on ARMv8-M architecture, the Cortex-M23 processor includes essential system peripherals:
  • Internal Bus Matrix with AHB master, Serial Wire Debug Port, and Single-cycle IO port
  • Nested Vectored Interrupt Controller (NVIC)
  • Breakpoint Unit (BPU)
  • Data Watchpoint and Trace (DWT)
  • Serial Wire Debug Port
Product Ordering Information
Ordering Code Flash (KB) Package Package Type Temperature Range
GD32E230F4P616TSSOP20Green Industrial-40°C to +85°C
GD32E230F6P632TSSOP20Green Industrial-40°C to +85°C
GD32E230F8P664TSSOP20Green Industrial-40°C to +85°C
GD32E230F4V616LGA20Green Industrial-40°C to +85°C
GD32E230F6V632LGA20Green Industrial-40°C to +85°C
GD32E230F8V664LGA20Green Industrial-40°C to +85°C
GD32E230G4U616QFN28Green Industrial-40°C to +85°C
GD32E230G6U632QFN28Green Industrial-40°C to +85°C
GD32E230G8U664QFN28Green Industrial-40°C to +85°C
GD32E230K4U616QFN32Green Industrial-40°C to +85°C
GD32E230K6U632QFN32Green Industrial-40°C to +85°C
GD32E230K8U664QFN32Green Industrial-40°C to +85°C
GD32E230K4T616LQFP32Green Industrial-40°C to +85°C
GD32E230K6T632LQFP32Green Industrial-40°C to +85°C
GD32E230K8T664LQFP32Green Industrial-40°C to +85°C
GD32E230C4T616LQFP48Green Industrial-40°C to +85°C
GD32E230C6T632LQFP48Green Industrial-40°C to +85°C
GD32E230C8T664LQFP48Green Industrial-40°C to +85°C
GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core 0 GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core 1 GD32E230K8T6 ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
