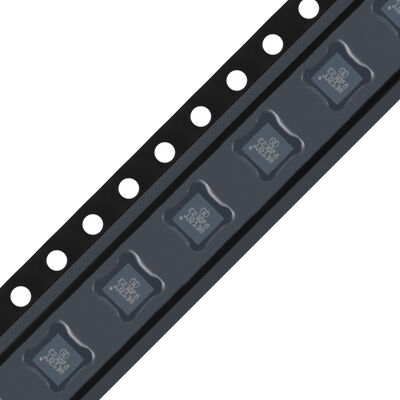

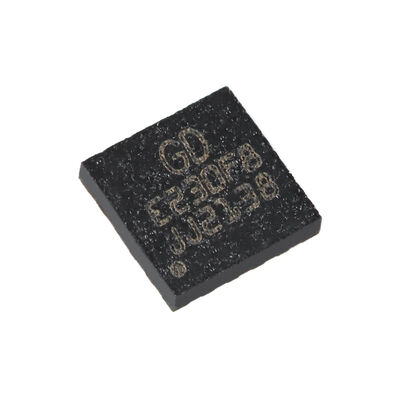

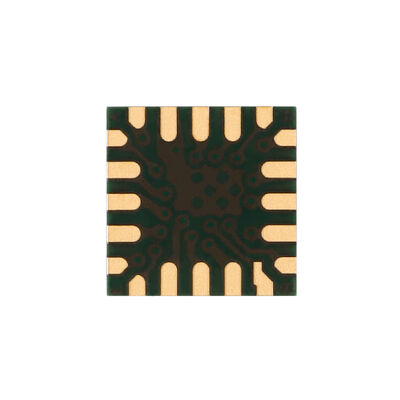

GD32E230F8V6TR ARM Cortex-M23 32-bitgeneral-purpose Microcontroller Based On The ARM® Cortex®-M23 Core

The Cortex-M23 processor is an energy-efficient processor with a very low gate count. It is intended to be used for microcontroller and deeply embedded applications that require an area-optimized processor. The processor is highly configurable enabling a wide range of implementations from those requiring memory protection and powerful trace technology to cost sensitive devices requiring minimal area, while delivering outstanding computational performance and an advanced system response to interrupts.

32-bit ARM® Cortex®-M23 processor core

• Up to 72 MHz operation frequency
• Single-cycle multiplication and hardware divider
• Ultra-low power, energy-efficient operation
• Excellent code density
• Integrated Nested Vectored Interrupt Controller (NVIC)
• 24-bit SysTick timer

The Cortex®-M23 processor is based on the ARMv8-M architecture and supports both Thumb and Thumb-2 instruction sets. Some system peripherals listed below are also provided by Cortex®-M23:

• Internal Bus Matrix connected with AHB master, Serial Wire Debug Port and Single-cycle IO port
• Nested Vectored Interrupt Controller (NVIC)
• Breakpoint Unit(BPU)
• Data Watchpoint and Trace (DWT)
• Serial Wire Debug Port

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
