MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface

MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface
MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface

Large Image :  MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: MCP4922-E/SL
Document: 1457707255746.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface

Description
Product Category:: Digital To Analog Converters - DAC Number Of Outputs:: 2
Operating Supply Voltage:: 2.7V~5.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 125 °C Package | Pins: SOIC-14
Highlight:

MCP4922-E/SL DAC with SPI interface

,

12-bit dual voltage output DAC

,

SPI interface digital-to-analog converter

MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converter with SPI Interface
The MCP4922-E/SL is a high-performance dual voltage output digital-to-analog converter featuring SPI interface compatibility. This versatile DAC family offers multiple resolution options for precision analog output applications.
Key Features
  • MCP4902: Dual 8-Bit Voltage Output DAC
  • MCP4912: Dual 10-Bit Voltage Output DAC
  • MCP4922: Dual 12-Bit Voltage Output DAC
  • Rail-to-Rail Output
  • SPI Interface with 20 MHz Clock Support
  • Simultaneous Latching of Dual DACs with LDAC Pin
  • Fast Settling Time of 4.5 µs
  • Selectable Unity or 2x Gain Output
  • External Voltage Reference Inputs
  • External Multiplier Mode
  • 2.7V to 5.5V Single-Supply Operation
  • Extended Temperature Range: -40°C to +125°C
Applications
  • Set Point or Offset Trimming
  • Precision Selectable Voltage Reference
  • Motor Control Feedback Loop
  • Digitally-Controlled Multiplier/Divider
  • Calibration of Optical Communication Devices
Product Family Comparison
Part Number DAC Resolution Number of Channels Voltage Reference
MCP4801 8-bit 1 Internal (2.048V)
MCP4811 10-bit 1 Internal (2.048V)
MCP4821 12-bit 1 Internal (2.048V)
MCP4802 8-bit 2 Internal (2.048V)
MCP4812 10-bit 2 Internal (2.048V)
MCP4822 12-bit 2 Internal (2.048V)
MCP4901 8-bit 1 External
MCP4911 10-bit 1 External
MCP4921 12-bit 1 External
MCP4902 8-bit 2 External
MCP4912 10-bit 2 External
MCP4922 12-bit 2 External

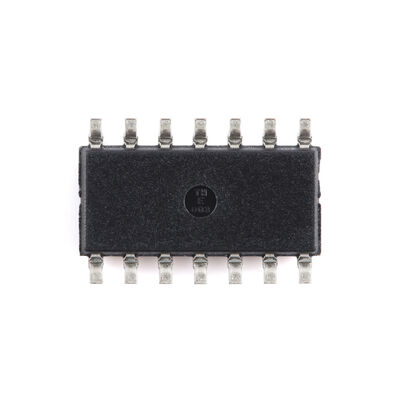

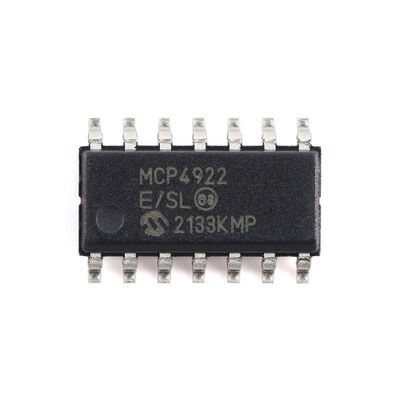

Product Images
MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface 0 MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface 1 MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converterwith SPI Interface 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
