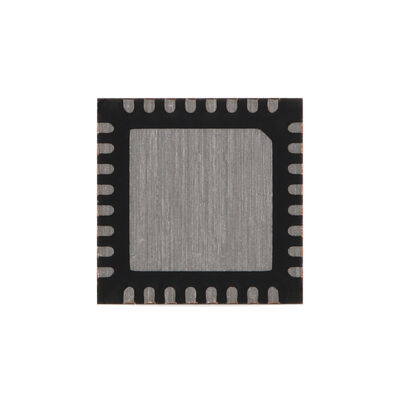

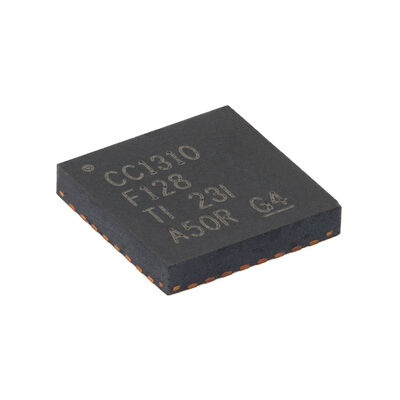

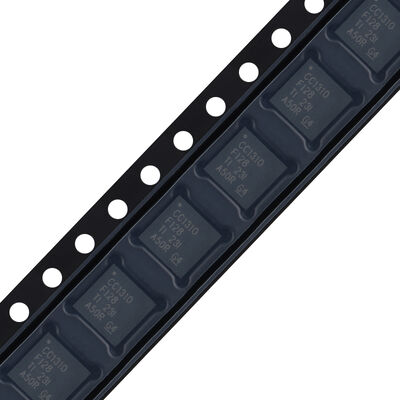

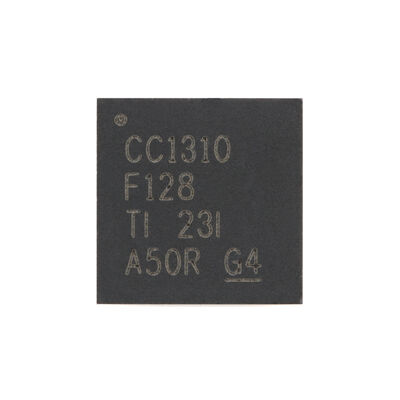

CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash

CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash

Large Image :  CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: CC1310F128RHBR
Document: cc1310.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash

Description
Product Category:: MCU Maximum Clock Frequency:: 48 MHz
Data Bus Width:: 32 Bit Program Memory Size:: 128 KB
Data RAM Size:: 20 KB Operating Voltage: 1.8 V~3.8 V
Number Of I/Os:: 15
Highlight:

SimpleLink 32-bit Arm Cortex-M3 MCU

,

Sub-1 GHz wireless microcontroller

,

128kB flash ARM Cortex-M3 MCU

CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU
A high-performance wireless microcontroller featuring 128kB Flash memory, designed for sub-1 GHz applications with ultra-low power consumption.
Key Features
  • Powerful Arm® Cortex®-M3 Processor
  • EEMBC CoreMark® Score: 142 | EEMBC ULPBench™ Score: 158
  • Clock Speed up to 48-MHz
  • 32KB, 64KB, and 128KB of In-System Programmable Flash
  • 8KB of SRAM for Cache (or as General-Purpose RAM)
  • 20KB of Ultra-Low-Leakage SRAM
  • 2-Pin cJTAG and JTAG Debugging
  • Supports Over-the-Air (OTA) Update
Ultra-Low-Power Sensor Controller
  • Can Run Autonomously From the Rest of the System
  • 16-Bit Architecture
  • 2KB of Ultra-Low-Leakage SRAM for Code and Data
Efficient Architecture
Parts of TI-RTOS, Drivers, and Bootloader placed in ROM for optimized code size.
RoHS-Compliant Package Options
  • 7-mm × 7-mm RGZ VQFN48 (30 GPIOs)
  • 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
  • 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
Peripheral Features
  • All Digital Peripheral Pins Can Be Routed to Any GPIO
  • Four General-Purpose Timer Modules (Eight 16-Bit or Four 32-Bit Timers, PWM Each)
  • 12-Bit ADC, 200 ksamples/s, 8-Channel Analog MUX
  • Continuous Time Comparator
  • Ultra-Low-Power Clocked Comparator
  • Programmable Current Source
  • UART, 2× SSI (SPI, MICROWIRE, TI)
  • I2C, I2S
  • Real-Time Clock (RTC)
  • AES-128 Security Module
  • True Random Number Generator (TRNG)
  • Support for Eight Capacitive Sensing Buttons
  • Integrated Temperature Sensor
Part Number Specifications
Part Number Package Body Size (Nom)
CC1310F128RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F128RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F128RSMVQFN (32)4.00 mm × 4.00 mm
CC1310F64RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F64RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F64RSMVQFN (32)4.00 mm × 4.00 mm
CC1310F32RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F32RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F32RSMVQFN (32)4.00 mm × 4.00 mm
