MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer

MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer
MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer

Large Image :  MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: MSP430G2332IPW20
Document: msp430g2332.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer

Description
Product Category:: MCU Max Speed (MHz): 16MHz
Data Bus Width:: 16 Bit Program Memory Size:: 4KB
Data RAM Size:: 16KB Operating Voltage: 1.8 V To 3.6 V
Number Of I/Os:: 16
Highlight:

MSP430G2332IPW20 16 MHz MCU

,

4KB Flash microcontroller with ADC

,

10-bit ADC MCU with SPI

MSP430G2332IPW20 16 MHz MCU
16 MHz microcontroller with 4KB Flash, 256B SRAM, 10-bit ADC, SPI/I2C interface, and timer functionality.
Key Features
  • Low supply voltage range: 1.8V to 3.6V
  • Up to 16 capacitive-touch enabled I/O pins
  • Ultra-low power consumption:
    • Active mode: 220 µA at 1 MHz, 2.2 V
    • Standby mode: 0.5 µA
    • Off mode (RAM retention): 0.1 µA
  • Universal Serial Interface (USI) supporting SPI and I2C
  • Five power-saving modes
  • 10-bit 200-ksps analog-to-digital converter with internal reference, sample-and-hold, and autoscan
  • Brownout detector
  • Serial onboard programming with programmable code protection
  • Ultra-fast wake-up from standby mode in less than 1 µs
  • On-chip emulation logic with Spy-Bi-Wire interface
  • 16-bit RISC architecture with 62.5-ns instruction cycle time
  • Basic clock module configurations with internal frequencies up to 16 MHz
  • Multiple package options: TSSOP (14/20 pin), PDIP (20 pin), QFN (16 pin)
  • One 16-bit Timer_A with three capture/compare registers
Device Family Comparison
Device Package EEM (Pins) Flash (KB) SRAM (B) Timer_A Channel USI Type I/O CLOCK
MSP430G2432IN20 20-PDIP 16 8 256 1x TA3 8 1 LF, DCO, VLO
MSP430G2432IPW20 20-TSSOP 16 8 256 1x TA3 8 1 LF, DCO, VLO
MSP430G2332IN20 20-PDIP 16 4 256 1x TA3 8 1 LF, DCO, VLO
MSP430G2332IPW20 20-TSSOP 16 4 256 1x TA3 8 1 LF, DCO, VLO
Product Images

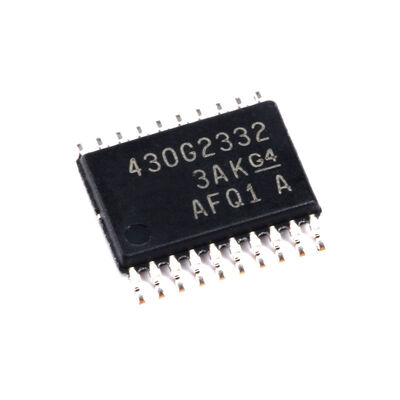

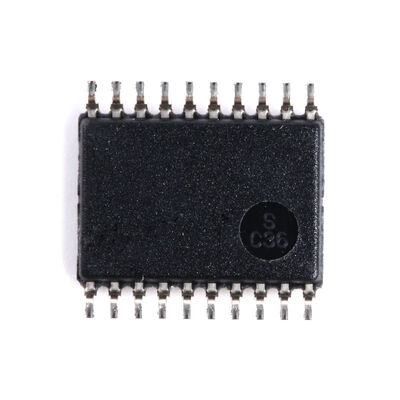

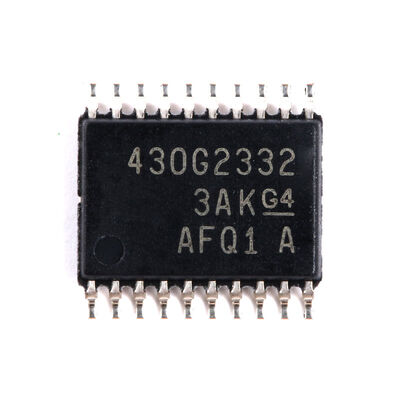

MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer 0 MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer 1 MSP430G2332IPW20 16 MHz MCU With 4KB Flash 256B SRAM 10-bit ADC SPI/I2C Timer 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
