MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr

MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr

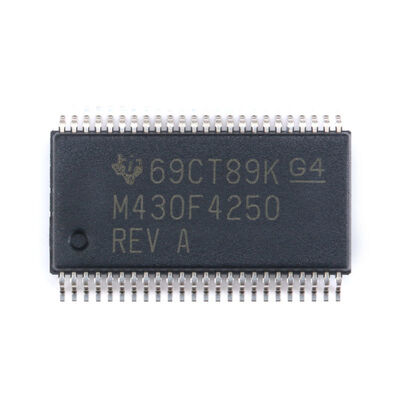

Large Image :  MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: MSP430F4250IDL
Document: msp430f4250.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

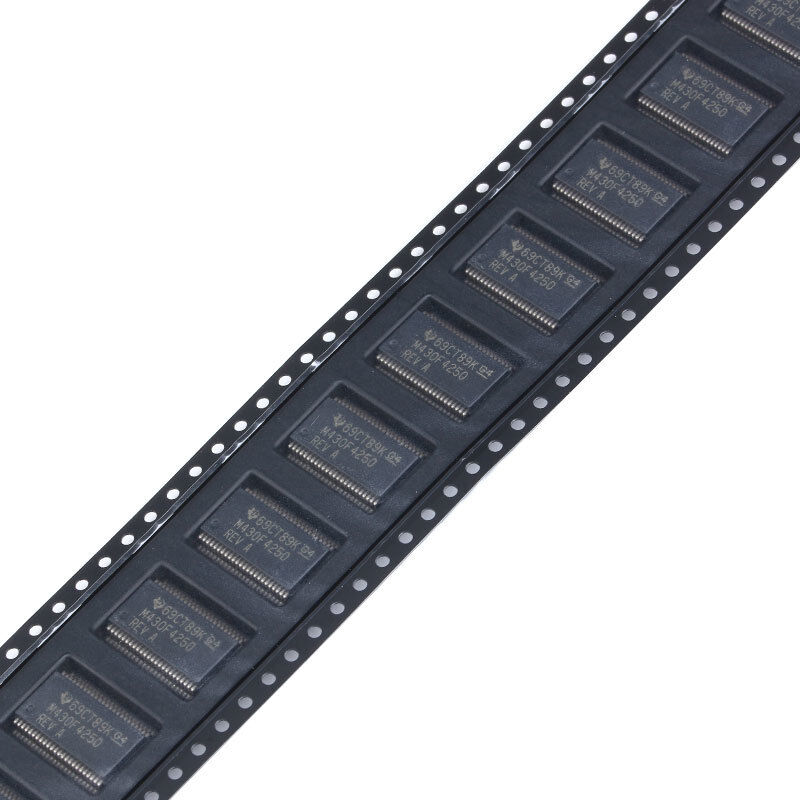

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr

Description
Product Category:: MCU Max Speed (MHz): 8MHz
Data Bus Width:: 16 Bit Program Memory Size:: 16KB
Data RAM Size:: 256Byte Operating Voltage: 1.8 V To 3.6 V
Number Of I/Os:: 32
Highlight:

MSP430F4250IDL 16-bit microcontroller

,

ultra-low power MCU

,

16-bit microcontroller with warranty

MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Low-Power
The MSP430F4250IDL is a 16-bit ultra-low-power microcontroller designed for energy-efficient applications requiring advanced analog capabilities and LCD driving functionality.
Key Features
  • Low supply-voltage range: 1.8 V to 3.6 V
  • Ultralow-power consumption:
    • Active mode: 250 μA at 1 MHz, 2.2 V
    • Standby mode: 1.1 μA
    • Off mode (RAM retention): 0.1 μA
  • Five power saving modes
  • Wake-up from standby mode in less than 6 μs
  • 16-bit RISC architecture, 125-ns instruction cycle time
  • 16-bit sigma-delta A/D converter with internal reference and five differential analog inputs
  • 12-bit D/A converter
  • 16-bit Timer_A with three capture/compare registers
  • Brownout detector
  • Bootstrap loader
  • Serial onboard programming, no external programming voltage needed
  • Programmable code protection by security fuse
  • Integrated LCD driver with contrast control for up to 56 segments
MSP430x42x0 Family Members
  • MSP430F4250: 16KB+256B Flash Memory, 256B RAM
  • MSP430F4260: 24KB+256B Flash Memory, 256B RAM
  • MSP430F4270: 32KB+256B Flash Memory, 256B RAM
For complete module descriptions, see the MSP430x4xx Family User's Guide, Literature Number SLAU056
For additional device information, see the MSP430F42x0 Device Erratasheet, Literature Number SLAZ022
Available part numbers: MSP430F4250IDL, MSP430F4250IRGZ, MSP430F4260IDL, MSP430F4260IRGZ, MSP430F4270IDL, MSP430F4270IRGZ −40°C to 85°C
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr 0 MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr 1 MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
