STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C

STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C

Large Image :  STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM8S005C6T6
Document: C169262_F5C29D9224BDDB9486A...55.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C

Description
Product Category:: MCU Max Speed (MHz): 16MHz
Data Bus Width:: 8 Bit Program Memory Size:: 32KB
Data RAM Size:: 2KB Operating Voltage: 2.95V~5.5V
Number Of I/Os:: 38

STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU
32 Kbytes Flash DataEEPROM with 10-bit ADC, Timers, UART, SPI, and I²C interfaces
Product Overview

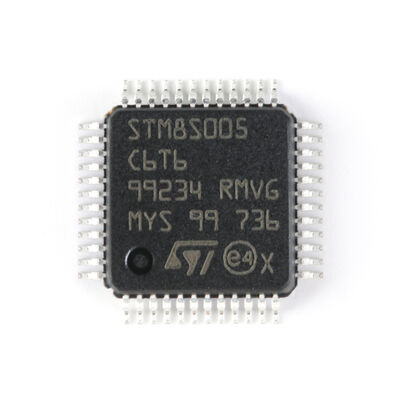

The STM8S005C6T6 is a high-performance 8-bit microcontroller from STMicroelectronics' Value Line series, featuring advanced STM8 core architecture with 3-stage pipeline and extended instruction set.
Key Specifications
  • Maximum CPU Frequency: 16 MHz
  • Harvard architecture with 3-stage pipeline
  • Program Memory: 32 Kbytes Flash (20 years data retention at 55°C)
  • Data Memory: 128 bytes true data EEPROM (100k write/erase cycles)
  • RAM: 2 Kbytes
  • Operating Voltage: 2.95V to 5.5V
Clock & Power Management
  • Four master clock sources: Low-power crystal resonator, external clock input, internal 16 MHz RC, internal 128 kHz RC
  • Clock security system with clock monitor
  • Power management with low-power modes (wait, active-halt, halt)
  • Individual peripheral clock control
  • Permanently active power-on/power-down reset
Product Comparison
Feature STM8S005C6 STM8S005K6
Pin Count 48 32
Max GPIOs (I/O) 38 25
External Interrupt Pins 35 23
Timer CAPCOM Channels 9 8
A/D Converter Channels 10 7
High-sink I/Os 16 12
Peripheral Set
Advanced control timer (TIM1), general purpose timers (TIM2 and TIM3), basic timer (TIM4), SPI, I2C, UART, Window WDG, independent WDG, ADC
STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C 0 STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C 1 STM8S005C6T6 Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C 2

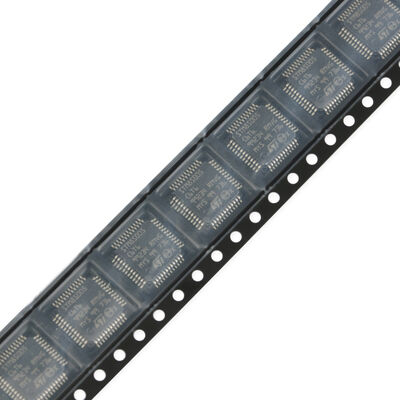

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
