STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs

STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs
STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs

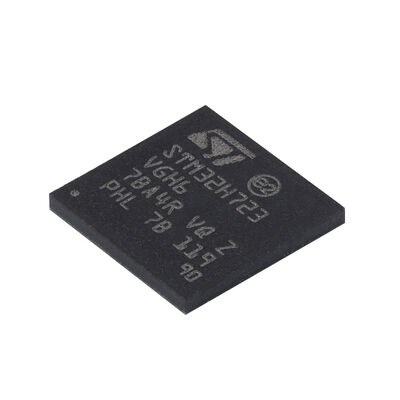

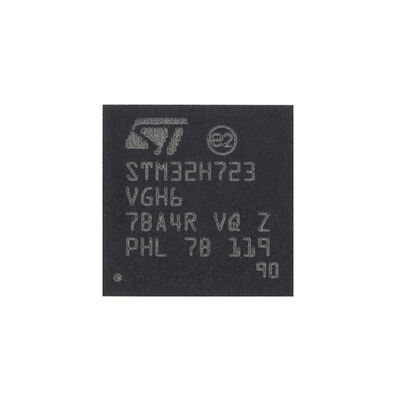

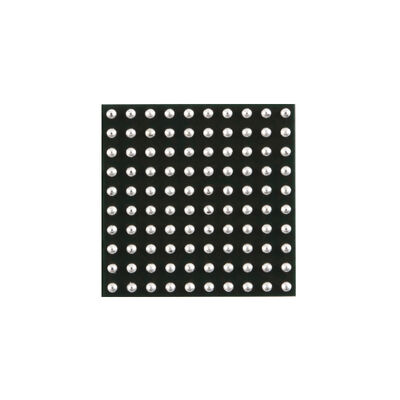

Large Image :  STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32H723VGH6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs

Description
Product Category:: MCU Max Speed (MHz): 550MHz
Data Bus Width:: 32 Bit Program Memory Size:: 1MB
Data RAM Size:: 564KB Operating Voltage: 1.62V~3.6V
Number Of I/Os:: 80

STM32H723VGH6 Arm® Cortex®-M7 32-bit MCU
High-performance 550 MHz microcontroller with 1MB Flash, 564KB RAM, Ethernet, USB, 3x FD-CAN, graphics capabilities, and dual 16-bit ADCs.
Key Features
Core Processor
  • 32-bit Arm® Cortex®-M7 CPU with DP-FPU
  • L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache
  • 0-wait state execution from embedded Flash and external memories
  • Operating frequency up to 550 MHz
  • MPU, 1177 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1)
  • DSP instructions support
Memory Configuration
  • Up to 1 Mbyte embedded Flash memory with ECC
  • Total 564 Kbytes SRAM all with ECC
  • 128 Kbytes data TCM RAM for critical real-time data
  • 432 Kbytes system RAM (up to 256 Kbytes remappable to instruction TCM)
  • 4 Kbytes backup SRAM available in lowest-power modes
External Memory & Interfaces
  • Flexible external memory controller with up to 16-bit data bus
  • Supports SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
  • 2 x Octo-SPI interface with XiP
  • 2 x SD/SDIO/MMC interface
Graphics Capabilities
  • Chrom-ART Accelerator graphical hardware accelerator
  • Enhanced graphical user interface with reduced CPU load
  • LCD-TFT controller supporting up to XGA resolution
DFSDM Features
Feature Specification
DFSDM DFSDM1
Number of filters 4
Number of input transceivers/channels 8
Internal ADC parallel input X
Number of external triggers 16
Regular channel information in identification register X
STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs 0
STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs 1
STM32H723VGH6 Arm® Cortex®-M7 32-bit 550 MHz MCU Up To 1MB Flash 564KBRAM Ethernet USB 3x FD-CAN Graphics 2x 16-bit ADCs 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
