PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver

PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver
PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver

Large Image :  PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: PIC16F1939-I/PT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver

Description
Product Category:: MCU Max Speed (MHz): 32MHz
Data Bus Width:: 8 Bit Program Memory Size:: 28KB
Data RAM Size:: 1KB Operating Voltage: 1.8V~5.5V
Number Of I/Os:: 36

PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers With LCD Driver
High-performance 8-bit CMOS microcontrollers featuring integrated LCD driver capabilities and extensive peripheral support for embedded applications.
Peripheral Features
  • I/O Configuration: Up to 35 I/O pins and 1 input-only pin with high-current source/sink for direct LED drive, individually programmable interrupt-on-pin change, and weak pull-ups
  • Integrated LCD Controller: Supports up to 96 segments with variable clock input, contrast control, and internal voltage reference selections
  • Capacitive Sensing Module (mTouch™): Up to 16 selectable channels
  • A/D Converter: 10-bit resolution with up to 14 channels and selectable 1.024V/2.048V/4.096V voltage reference
  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  • Enhanced Timer1: Dedicated low-power 32 kHz oscillator driver, 16-bit timer/counter with prescaler, external Gate Input mode with toggle and single-shot modes
  • Timer2/4/6: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Two Capture, Compare, PWM Modules (CCP): 16-bit capture (125 ns max resolution), 16-bit compare (125 ns max resolution), 10-bit PWM (31.25 kHz max frequency)
  • Three Enhanced Capture, Compare, PWM Modules (ECCP): Three PWM time-base options with auto-shutdown, auto-restart, PWM steering, and programmable dead-band delay
Device Memory Specifications
Device Program Memory Space (Words) Last Program Memory Address
PIC16F1938/PIC16LF1938 16,384 3FFFh
PIC16F1939/PIC16LF1939 16,384 3FFFh

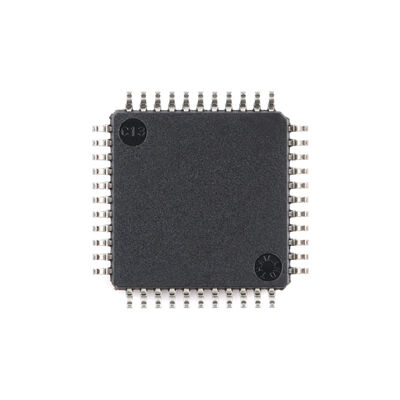

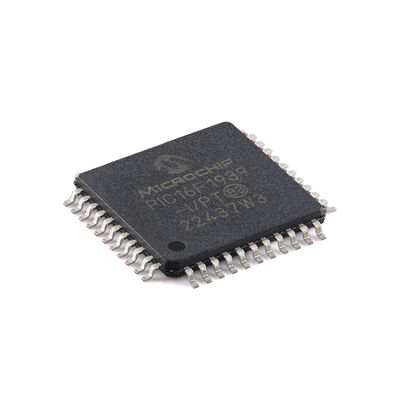

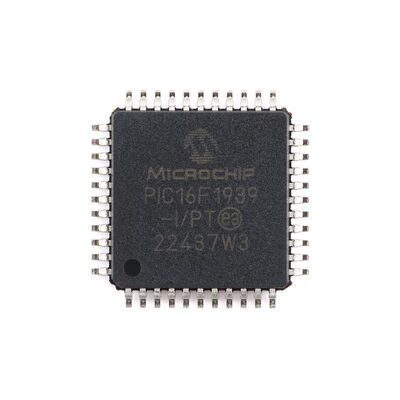

Product Images
PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver 0 PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver 1 PIC16F1939-I/PT 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers WithLCD Driver 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
