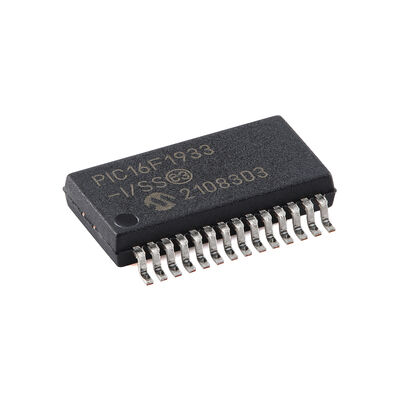

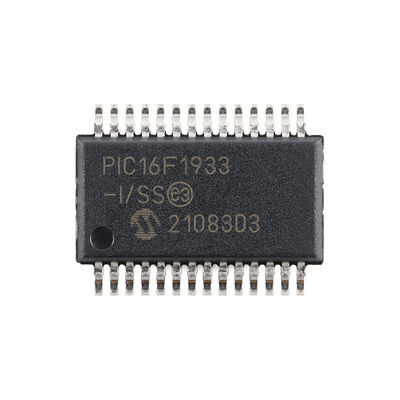

PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology

PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology
PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology

Large Image :  PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: PIC16F1933-I/SS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology

Description
Product Category:: MCU Max Speed (MHz): 32MHz
Data Bus Width:: 8 Bit Program Memory Size:: 7KB
Data RAM Size:: 256Byte Operating Voltage: 1.8V~5.5V
Number Of I/Os:: 25
Highlight:

28-pin flash-based CMOS microcontroller

,

8-bit microcontroller with LCD driver

,

XLP technology MCU microcontroller

PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers With LCD Driver With XLP Technology
28-pin flash-based 8-bit CMOS microcontrollers featuring integrated LCD driver and XLP (eXtreme Low Power) technology for energy-efficient applications.
Peripheral Features
  • I/O Configuration: Up to 35 I/O pins and 1 input-only pin with high-current source/sink for direct LED drive, individually programmable interrupt-on-pin-change pins, and individually programmable weak pull-ups
  • Integrated LCD Controller: Supports up to 96 segments with variable clock input, contrast control, and internal voltage reference selections
  • Capacitive Sensing Module (mTouch™): Up to 16 selectable channels
  • A/D Converter: 10-bit resolution with up to 14 channels and selectable 1.024V/2.048V/4.096V voltage reference
  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  • Enhanced Timer1: Dedicated low-power 32 kHz oscillator driver, 16-bit timer/counter with prescaler, External Gate Input mode with Toggle and Single Shot modes, and interrupt-on-gate completion
  • Timer2, 4, 6: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Two Capture, Compare, PWM Modules (CCP): 16-bit capture (max. resolution 125 ns), 16-bit compare (max. resolution 125 ns), and 10-bit PWM (max. frequency 31.25 kHz)
  • Three Enhanced Capture, Compare, PWM Modules (ECCP): 3 PWM time-base options with auto-shutdown, auto-restart, PWM steering, and programmable dead-band delay
VCAP Configuration
VCAPEN<1:0> Pin Configuration
00 RA0
01 RA5
10 RA6
11 No VCAP
PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology 0 PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology 1 PIC16F1933-I/SS 28-Pin Flash-Based 8-Bit CMOS Microcontrollers WithLCD Driver With XLP Technology 2

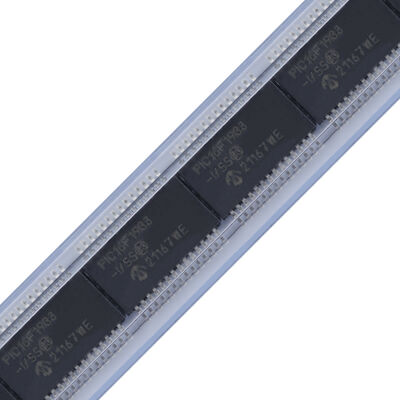

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
