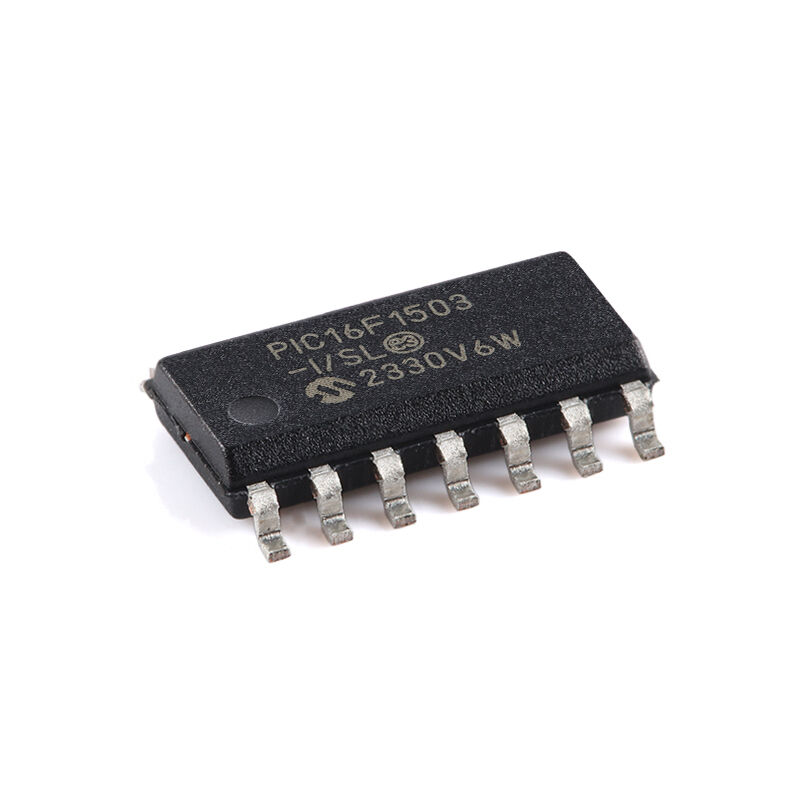

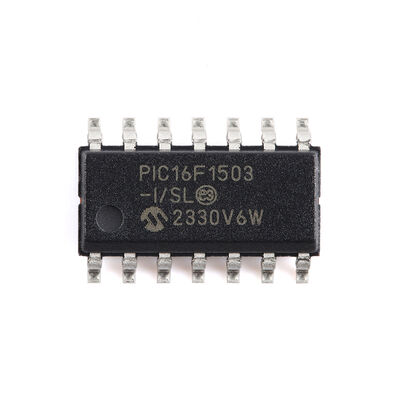

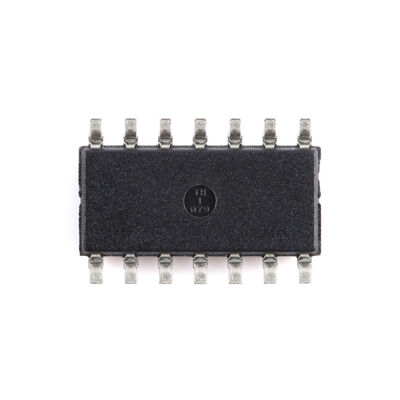

PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers

PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers
PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers

Large Image :  PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: PIC16F1829-I/SS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

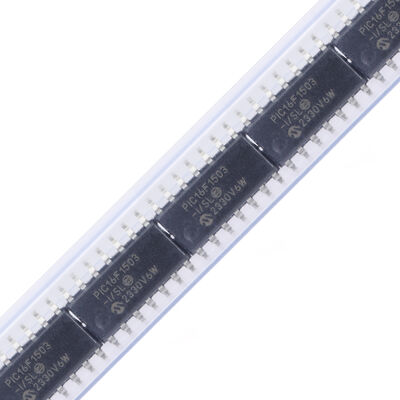

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers

Description
Product Category:: MCU Max Speed (MHz): 20MHz
Data Bus Width:: 8 Bit Program Memory Size:: 3.5KB
Data RAM Size:: 128Byte Operating Voltage: 2.3V~5.5V
Number Of I/Os:: 11
Highlight:

PIC16F1503 14-pin microcontroller

,

8-bit flash microcontroller

,

MCU with 14-pin configuration

PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers
High-performance 8-bit microcontroller with advanced peripheral features for industrial applications.
Peripheral Features
Analog-to-Digital Converter (ADC)
  • 10-bit resolution with eight external channels
  • Three internal channels including Fixed Voltage Reference
  • Digital-to-Analog Converter (DAC) functionality
  • Temperature Indicator channel
  • Auto acquisition capability
  • Conversion available during Sleep mode
5-Bit Digital-to-Analog Converter (DAC)
  • External output availability
  • Positive reference selection
  • Internal connections to comparators and ADC
Dual Comparators
  • Rail-to-rail inputs
  • Power mode control
  • Software controllable hysteresis
Voltage Reference
  • 1.024V Fixed Voltage Reference (FVR)
  • 1x, 2x and 4x Gain output levels
I/O Configuration
  • 12 I/O pins (1 input-only pin)
  • High current sink/source: 25 mA/25 mA
  • Individually programmable weak pull-ups
  • Individually programmable Interrupt-On-Change (IOC) pins
Timer Modules
  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  • Enhanced Timer1: 16-bit timer/counter with prescaler and external gate input mode
  • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Four 10-bit PWM modules
Device Specifications
Device Program Memory Space (Words) Last Program Memory Address High-Endurance Flash Memory Address Range
PIC16LF1503 / PIC16F1503 2,048 07FFh 0780h-07FFh
PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers 0 PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers 1 PIC16F1503-I/SL 14-Pin Flash 8-Bit Microcontrollers 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
