TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR

TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR
TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR

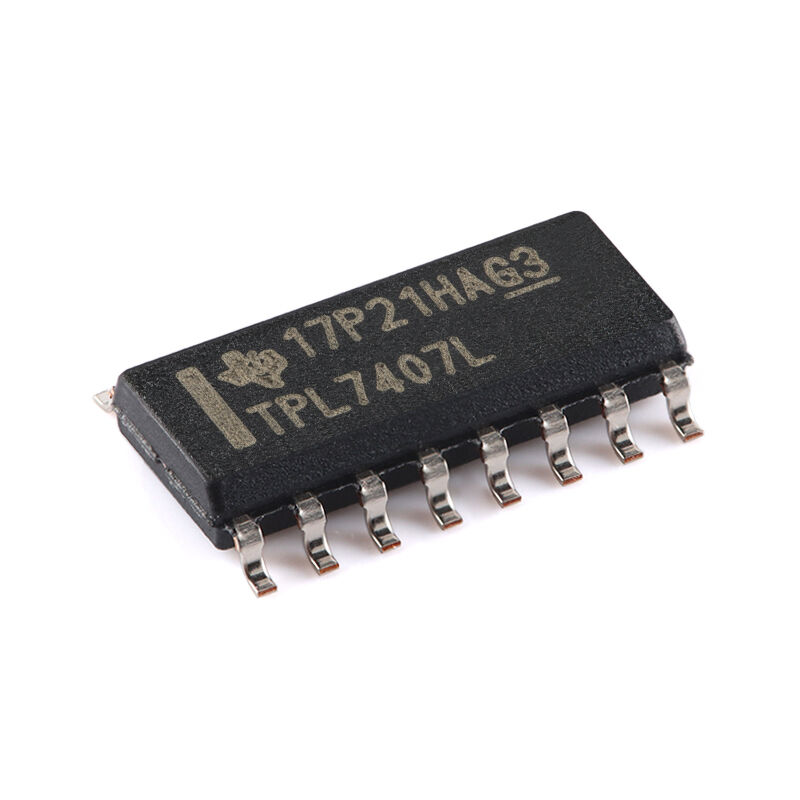

Large Image :  TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: ROHS
Model Number: TPL7407LDR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR

Description
Product Category:: Gate Drivers RTC Bus Interface:: I2C
Operating Temperature Range (°C): -40℃~+85℃ Supply Voltage (min) (V): 0 V
Supply Voltage (max) (V): 40 V Package / Case:: SOIC-16
Number Of Outputs:: 7 Output Logic Type:: CMOS, TTL

TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR
Product Overview

The TPL7407L is a high-voltage, high-current NMOS transistor array featuring seven NMOS transistors with common-cathode clamp diodes for switching inductive loads. This device offers improved power efficiency and lower leakage compared to bipolar Darlington implementations.

Key Features
  • 600-mA rated drain current per channel
  • CMOS pin-to-pin improvement of 7-channel Darlington array (e.g., ULN2003A)
  • Power efficient with very low VOL
    • Less than 4 times lower VOL at 100 mA than Darlington array
  • Very low output leakage < 10 nA per channel
  • Extended ambient temperature range: TA = –40°C to 125°C
  • High-voltage outputs: 40 V
  • Compatible with 1.8-V to 5.0-V micro-controllers and logic interface
  • Internal free-wheeling diodes for inductive kickback protection
  • Input pull-down resistors allow tri-stating the input driver
  • Input RC-snubber to eliminate spurious operation in noisy environments
  • ESD protection exceeds JESD 22
    • 2-kV HBM, 500-V CDM
  • Available in 16-pin SOIC and TSSOP packages
Applications
  • Inductive Loads
    • Relays
    • Unipolar stepper & brushed DC motors
    • Solenoids & valves
  • LEDs
  • Logic level shifting
  • Gate & IGBT drive
Device Information
Part Number Package (Pins) Body Size (Nom)
TPL7407LD SOIC (16) 9.90 mm x 3.91 mm
TPL7407LPW TSSOP (16) 5.00 mm x 4.40 mm

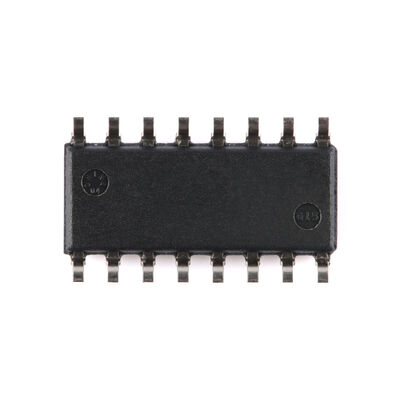

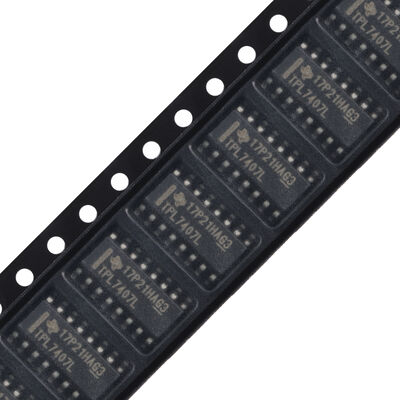

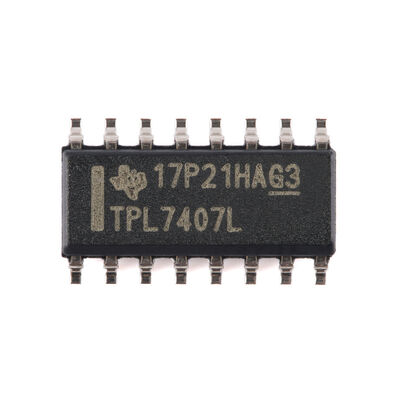

Product Images
TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR 0 TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR 1 TPL7407LDR Gate Drivers 40V 7-CH Lo Side DVR 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
