PCA9635PW,118 16-bit Fm+ I2C-bus LED Driver

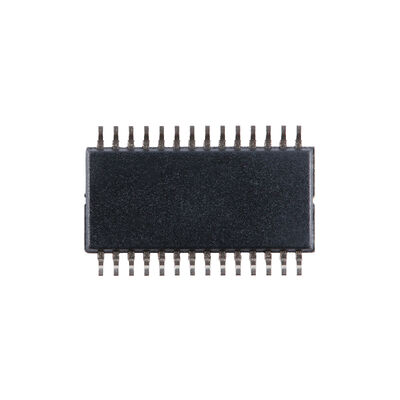

Large Image : PCA9635PW,118 16-bit Fm+ I2C-bus LED Driver

Product Details:

Place of Origin:	CN
Brand Name:	NXP
Certification:	ROHS
Model Number:	PCA9635PW,118
Document:	PCA9635.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

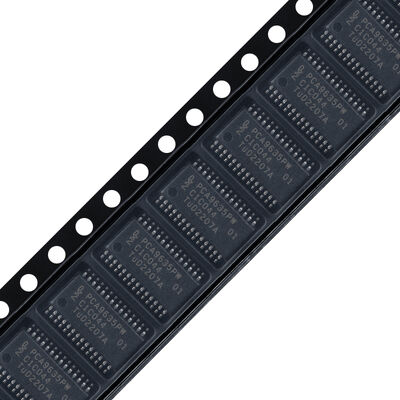

Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

PCA9635PW,118 16-bit Fm+ I2C-bus LED Driver

Description

Product Category::	LED Display Drivers	Package / Case::	TSSOP-28
Output Current::	2.3V	Input Voltage - Max::	5.5 V
Minimum Operating Temperature::	- 40 C	Maximum Operating Temperature::	+ 85 C
Low Level Output Current::	25 MA

PCA9635PW,118 16-bit Fm+ I2C-bus LED Driver

The PCA9635PW,118 is a 16-bit Fm+ I2C-bus LED driver offering comprehensive control capabilities for LED lighting applications.

Key Features

16 LED drivers with programmable outputs: Off, On, Programmable LED brightness, and Programmable group dimming/blinking
1 MHz Fast-mode Plus compatible I2C-bus interface with 30 mA high drive capability
256-step (8-bit) linear programmable brightness per LED output
256-step group brightness control and group blinking functionality
Sixteen totem-pole outputs (sink 25 mA and source 10 mA at 5 V)
Output state change programmable on Acknowledge or STOP Command
Active LOW Output Enable (OE) input pin
7 hardware address pins supporting up to 126 devices on the same I2C-bus
4 software programmable I2C-bus addresses
Software Reset feature (SWRST Call)
25 MHz internal oscillator requiring no external components
Operating power supply voltage range: 2.3 V to 5.5 V
Operating temperature range: -40 °C to +85 °C
ESD protection exceeding industry standards

Package Information

Type Number	Topside Package Mark	Name	Description	Version
PCA9635PW	PCA9635PW	TSSOP28	plastic thin shrink small outline package; 28 leads; body width 4.4 mm	SOT361-1
PCA9635PW/Q900[1]	PCA9635PW	TSSOP28	plastic thin shrink small outline package; 28 leads; body width 4.4 mm	SOT361-1

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
