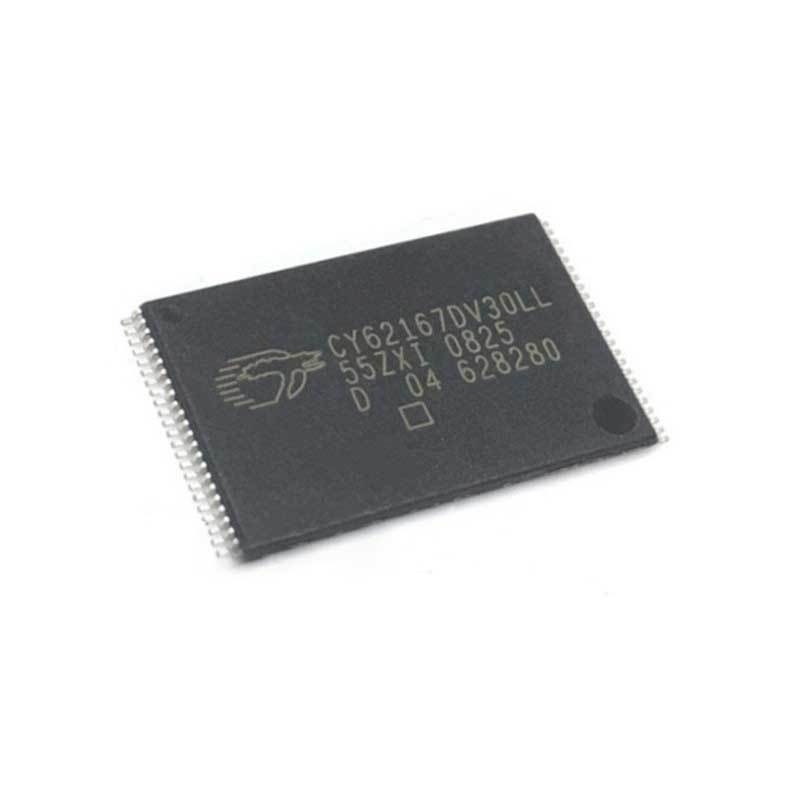

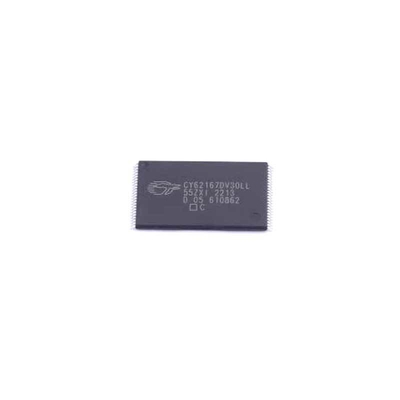

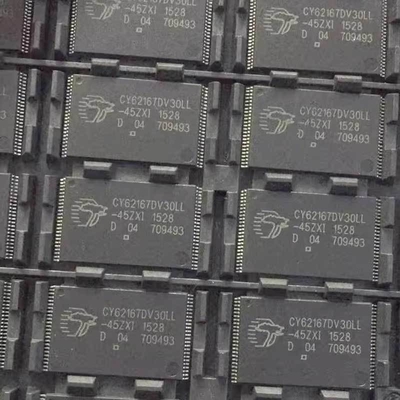

16Mbit SRAM Chip Memory Data Storage CY62167DV30LL-55ZXIT

The CY62167DV30 is a high-performance CMOS static RAM organized as 1M words by 16-bits, featuring advanced circuit design for ultra-low active current consumption.

• Thin small outline package (TSOP-I) configurable as 1 M × 16 or as 2 M × 8 SRAM
• Wide voltage range: 2.2 V-3.6 V
• Ultra-low active power: Typical active current: 2 mA at f = 1 MHz
• Ultra-low standby power
• Easy memory expansion with CE1, CE2 and OE features
• Automatic power-down when deselected
• Complementary metal oxide semiconductor (CMOS) for optimum speed/power
• Available in Pb-free and non Pb-free 48-ball very fine-pitch ball grid array (VFBGA)

This device is ideal for portable applications requiring extended battery life (MoBL® technology). The automatic power-down feature reduces power consumption by 99% when addresses are not toggling.
