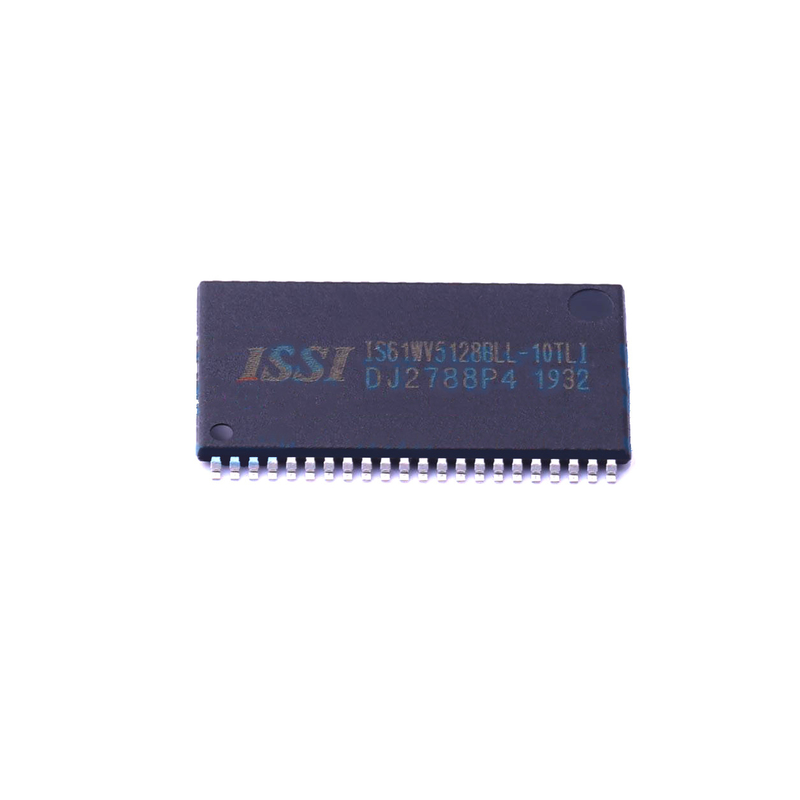

ISSI 4Mbit 8bit Static Ram Chip Static Random Access Memory IS61WV5128BLL-10TLI

• High-speed access time: 8, 10, 20 ns
• Low active power consumption: 85 mW (typical value)
• Low standby power consumption: 7 mW (typical value) CMOS standby
• Single power supply: VDD 1.65V to 2.2V (IS61WV5128Axx) or 2.4V to 3.6V (IS61/64WV5128BXX)
• Fully static operation: No clock or refresh requirements
• Three-state output
• Industrial and automotive temperature support
• Lead-free option available

The IS61WV5128Axx and IS61/64WV5128Bxx are ultra-high-speed, low-power, 524,288-bit 8-bit CMOS static RAM devices. Manufactured using ISSI's high-performance CMOS process, these devices combine innovative circuit design technology to deliver both high performance and low power consumption.

When CE is at a high level (not selected), the device enters standby mode, reducing power consumption to CMOS input levels. Available in various packages including 36-pin 400 mil SOJ, 36-pin mini BGA, and 44-pin TSOP(Type II).

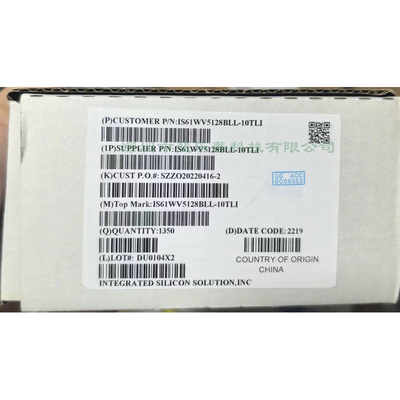

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
