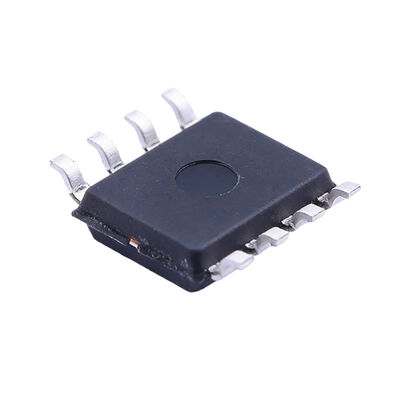

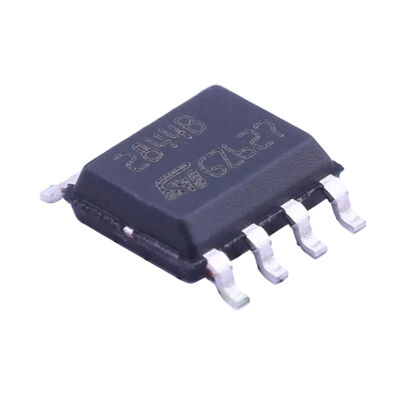

UC2844BD1013TR High Performance Current Mode PWM Controller with 500 kHz Switching Frequency, 1 A Output Current, and 50% Max Duty Cycle

• TRIMMED OSCILLATOR FOR PRECISE FREQUENCY CONTROL.
• OSCILLATOR FREQUENCY GUARANTEED AT 250kHz.
• CURRENT MODE OPERATION TO 500kHz.
• AUTOMATIC FEED FORWARD COMPENSATION.
• LATCHING PWM FOR CYCLE-BY-CYCLE CURRENT LIMITING.
• INTERNALLY TRIMMED REFERENCE WITH UNDERVOLTAGE LOCKOUT.
• HIGH CURRENT TOTEM POLE OUTPUT.
• UNDERVOLTAGE LOCKOUT WITH HYSTERESIS.
• LOW START-UP AND OPERATING CURRENT

The UC384xB family of control ICs provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include a trimmed oscillator for precise DUTY CYCLE CONTROL under voltage lockout featuring start-up current less than 0.5mA, a precision reference trimmed for accuracy at the erroramp input, logic to insure latched operation, a PWM comparator which also provides current limit control, and a totem pole output stage designed to source or sink high peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the offstate.

Differences between members of this family are the under-voltage lockout thresholds and maximum duty cycle ranges. The UC3842B and UC3844B have UVLO thresholds of 16V (on) and 10V (off), ideally suited off-line applications The corresponding thresholds for the UC3843B and UC3845B are 8.5 V and 7.9V. The UC3842B and UC3843B can operate to dutycycles approaching 100%. A range of the zero to <50 % is obtained by the UC3844B and UC3845B by the addition of an internal toggle flip flop which blanks the output off every other clock cycle.
