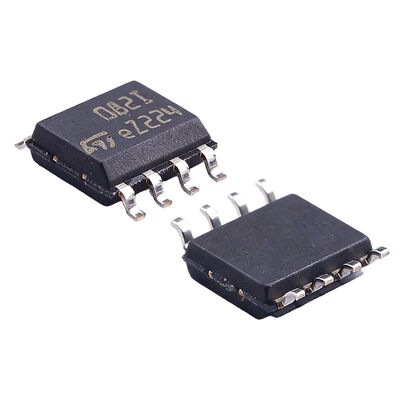

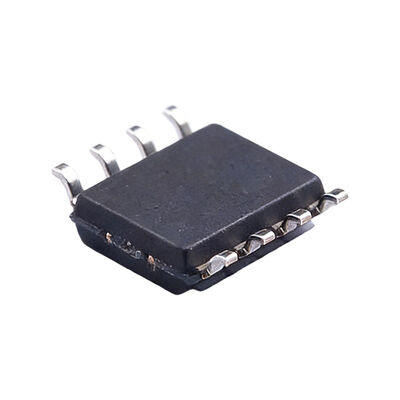

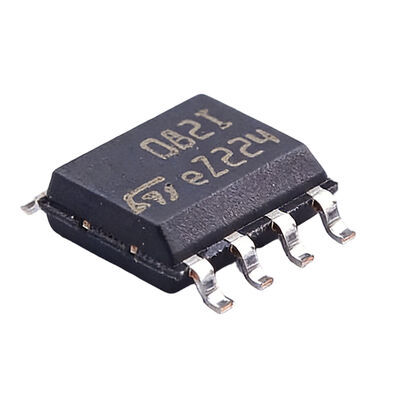

TL082IDT Dual JFET Operational Amplifier with 4 MHz Gain Bandwidth 16 V/us Slew Rate and Low Input Bias Current

Large Image : TL082IDT Dual JFET Operational Amplifier with 4 MHz Gain Bandwidth 16 V/us Slew Rate and Low Input Bias Current

Product Details:

Place of Origin:	CN
Brand Name:	ST
Certification:	rohs
Model Number:	TL082IDT
Document:	C472561_D4F8F00D5D3315BE70E...23.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

TL082IDT Dual JFET Operational Amplifier with 4 MHz Gain Bandwidth 16 V/us Slew Rate and Low Input Bias Current

Description

Product Category::	Operational Amplifiers - Op Amps	GBP - Gain Bandwidth Product::	4 MHz
SR - Slew Rate::	16 V/us	Vos - Input Offset Voltage::	10 MV
Ib - Input Bias Current::	200 PA	Supply Voltage - Max::	36 V, +/- 18 V
Supply Voltage - Min::	6 V, +/- 3 V	Operating Supply Current::	2.5 MA
Highlight:	4 MHz Gain Bandwidth Operational Amplifier , 16 V/us Slew Rate Op Amp , Low Input Bias Current JFET Amplifier

TL082IDT Operational Amplifiers - Op Amps Dual Gen Purp JFET

Features

Wide common-mode (up to VCC+) and differential voltage range
Low input bias and offset current
Output short-circuit protection
High input impedance JFET input stage
Internal frequency compensation
Latch up free operation
High slew rate: 16 V/µs (typical)

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.

Absolute maximum ratings and operating conditions

Symbol	Parameter	TL082I, AI, BI	TL082C, AC, BC	Unit
VCC	Supply voltage (1)	±18	±18	V
Vin	Input voltage V(2)	±15	±15	V
Vid	Differential input voltage (3)	±30	±30	V
Ptot	Power dissipation	680	680	mW
Rthja	Thermal resistance junction-to-ambient (4)	SO8 125°C/W TSSOP8 120	SO8 125°C/W TSSOP8 120	°C/W
Rthjc	Thermal resistance junction-to-case	SO8 40 TSSOP8 37	SO8 40 TSSOP8 37	°C/W
	Output short-circuit duration (5)	Infinite	Infinite
Tstg	Storage temperature range	-65 to 150	-65 to 150	°C
ESD	HBM: human body model (6)	1	1	kV
	MM: machine model (7)	200	200	V
	CDM: charged device model (8)	1500	1500

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
