NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance

NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance
NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance

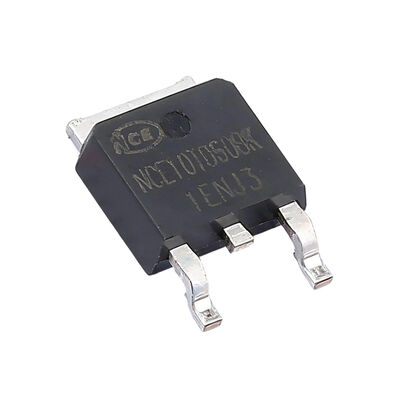

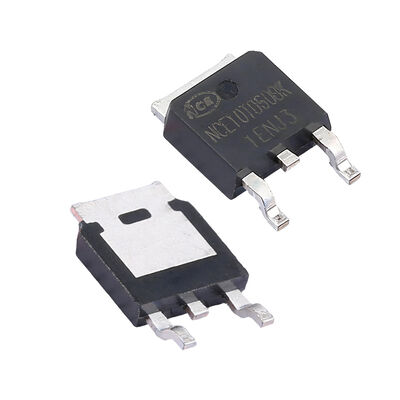

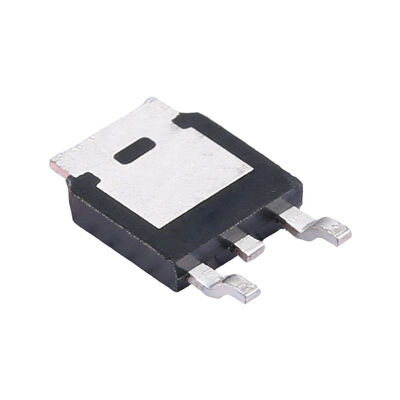

Large Image :  NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance

Product Details:
Place of Origin: CN
Brand Name: NCE
Certification: rohs
Model Number: NCE10TD60BK
Document: _NCE10TD60BK_.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

NCE10TD60BK 600V Trench FSII IGBT with 20A Collector Current for Superior Conduction and Switching Performance

Description
IGBT Type: FS (Field Cutoff) Collector Breakdown Voltage (Vces): 600V
Collector Current (Ic): 20A Dissipated Power (Pd): 83W
Collector-emitter Saturation Voltage (VCE(sat)): 1.9V@10A,15V Gate Threshold Voltage (Vge(th): 4V@1mA
Highlight:

600V Collector Breakdown Voltage IGBT

,

20A Collector Current Trench FSII IGBT

,

Trench FSII Technology Power Transistor

NCE10TD60BK the 600V Trench FSII IGBT offers superior conduction and switching performances

Features

Trench FSII Technology offering

  • Very low VCE(sat)
  • High speed switching
  • Positive temperature coefficient in VCE(sat)
  • Very tight parameter distribution
  • High ruggedness, temperature stable behavior

Application

  • Air Condition
  • Inverters
  • Motor drives

Package Marking and Ordering Information

Device Device Package Device Marking
NCE10TD60BK TO-252 NCE10TD60BK
