TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package

TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package
TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package

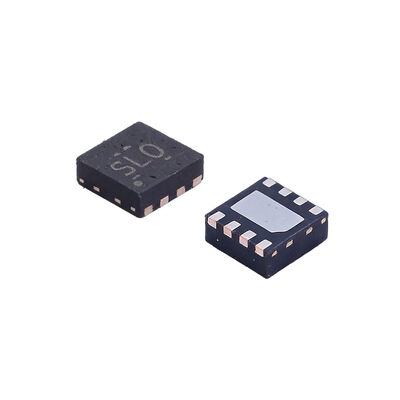

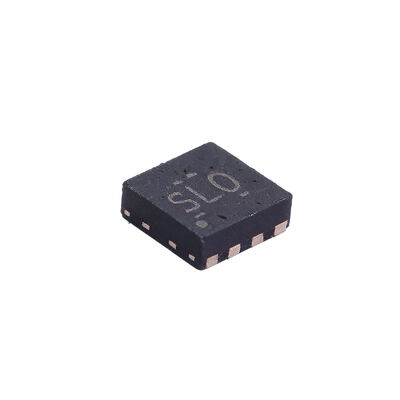

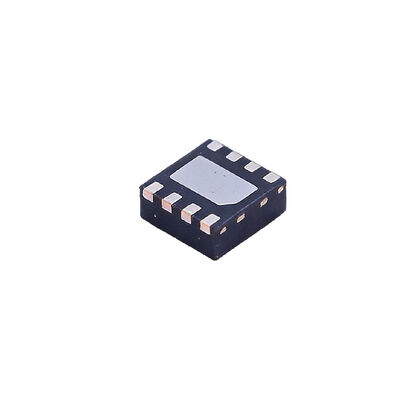

Large Image :  TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: TLV62084DSGR
Document: tlv62084.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package

Description
Mounting Style:: SMD/SMT Package / Case:: WSON-8
Topology:: Buck Output Voltage:: 500 MV To 4 V
Output Current:: 2 A Number Of Outputs:: 1 Output
Highlight:

2A Output Current Switching Voltage Regulator

,

High Efficiency Power Management IC

,

WSON-8 Package DC-DC Converter

TLV62084DSGR Switching Voltage Regulators 2A High Efficient SD Converter A 595-TLV A 595-TLV62084DSGT
Features
  • DCS-ControlT architecture, used for fast transient voltage stabilization
  • Input voltage range from 2.5V to 6V (TLV62080)
  • Input voltage range from 2.7V to 6V (TLV62084and TLV62084A)
  • 100% duty cycle to achieve minimum voltage drop
  • Power-saving mode for achieving light-load efficiency
  • Output discharge function
  • Normal power output
  • Heat shutdown
  • Uses 2mm x 2mm, 8-pin wafer-level small outlineno-lead (WSON) package
  • For improved feature sets, refer to TPS62080
  • Use TLV6208x and create custom designsolutions using WEBENCH Power Designer
PIN I/O Description
NO. NAME DESCRIPTION
1 EN IN Device enable logic input. Do not leave floating. Logic HIGH enables the device, logic LOW disables the device and turns it into shutdown.
2, 3 GND PWR Power and signal ground.
4 FB IN Feedback terminal for the internal control loop. Connect this terminal to the external feedback divider to program the output voltage.
5 VOS IN Output voltage sense terminal for the internal control loop. Must be connected to output.
6 PG OUT Power Good open drain output. This terminal is pulled to low if the output voltage is below regulation limits. This terminal can be left floating if not used.
7 SW PWR Switch terminal connected to the internal MOSFET switches and inductor terminal. Connect the inductor of the output filter here.
8 VIN PWR Power supply voltage input.
— ExposedThermal Pad Must be connected to GND. Must be soldered to achieve appropriate power dissipation and mechanical reliability.

TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package 0 TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package 1 TLV62084DSGR 2A Output Current High Efficiency Switching Voltage Regulator with WSON-8 Package 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
