MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter

MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter
MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter

Large Image :  MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter

Product Details:
Place of Origin: CN
Brand Name: AEROSEMI
Certification: rohs
Model Number: MT2492
Document: 5C81DA9662873D3A116170FFBF6...9D.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter

Description
Chip Type: DC/DC Converter Operating Voltage: 4.5V~16V
Switching Frequency: 600kHz Static Current (Iq): -
Output Control Terminals: 1 Operating Temperature Range (°C): -40℃~+85℃@(TA)
Highlight:

MT2492 step-down converter

,

4.5V-16V input power chip

,

600kHz synchronous buck converter

MT2492 2A 4.5V-16V Input 600kHz Synchronous Step-Down Converter
High-efficiency synchronous step-down converter with 2A output current and wide input voltage range for various power applications.
Key Features
  • High Efficiency: Up to 96%
  • 600kHz Frequency Operation
  • 2A Output Current
  • No Schottky Diode Required
  • 4.5V to 16V Input Voltage Range
  • 0.6V Reference
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
  • Integrated Internal Compensation
  • Stable with Low ESR Ceramic Output Capacitors
  • Over Current Protection with Hiccup-Mode
  • Thermal Shutdown
  • Inrush Current Limit and Soft Start
  • Available in SOT23-6 Package
  • -40°C to +85°C Temperature Range
Applications
  • Distributed Power Systems
  • Digital Set Top Boxes
  • Flat Panel Television and Monitors
  • Wireless and DSL Modems
  • Notebook Computers
Pin Description
Pin Name Pin Number Description
BS 1 Bootstrap. A capacitor connected between SW and BS pins is required to form a floating supply across the high-side switch driver.
GND 2 Analog ground pin.
FB 3 Adjustable version feedback input. Connect FB to the center point of the external resistor divider.
EN 4 Drive this pin to a logic-high to enable the IC. Drive to a logic-low to disable the IC and enter micro-power shutdown mode.
VIN 5 Power supply Pin
SW 6 Switching Pin

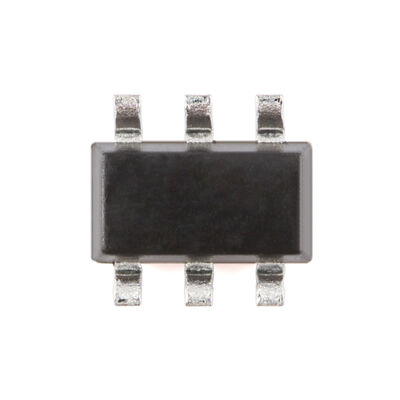

Product Images
MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter 0 MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter 1 MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter 2 MT2492 2A 4.5V-16V Input 600kHzSynchronous Step-Down Converter 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
