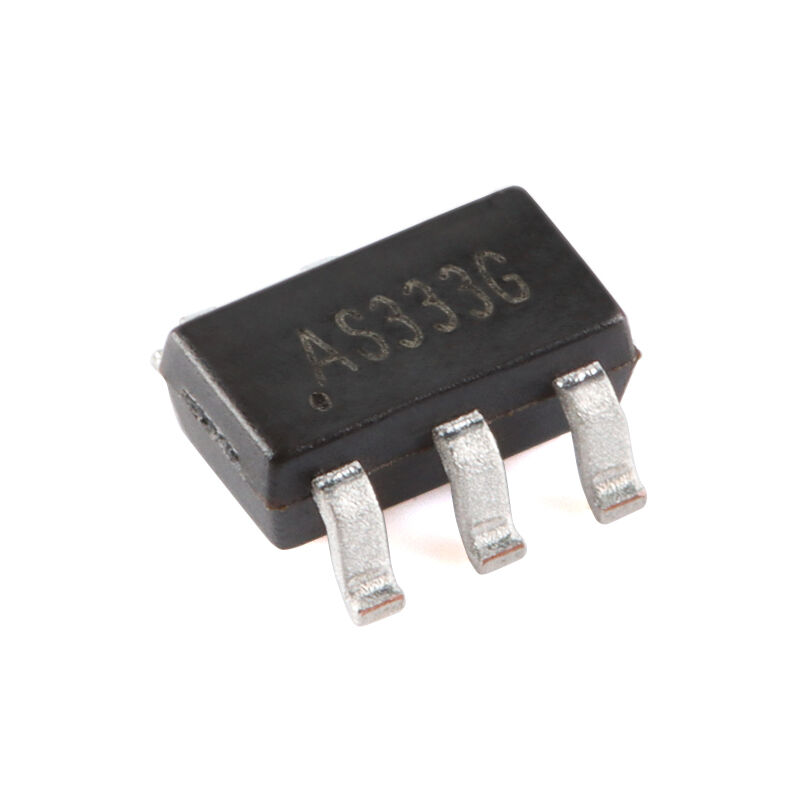

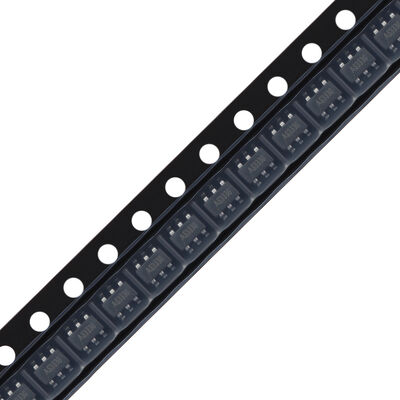

MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter
MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

Large Image :  MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

Product Details:
Place of Origin: CN
Brand Name: AEROSEMI
Certification: rohs
Model Number: MT1471
Document: A8FA3B1F5B3CB5F53DE7D888B31...A5.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

Description
Chip Type: DC/DC Converter Operating Voltage: 4.5V~16V
Switching Frequency: 500kHz Static Current (Iq): -
Output Control Terminals: 1 Operating Temperature Range (°C): -40℃~+85℃
Highlight:

MT1471 step-down converter chip

,

4.5V-16V input power converter

,

500kHz synchronous buck converter

MT1471 3A 4.5V-16V Input 500kHz Synchronous Step-Down Converter
High-efficiency synchronous step-down converter delivering 3A output current with 4.5V to 16V input voltage range and 500kHz switching frequency.
Key Features
  • High Efficiency: Up to 96%
  • 500kHz Frequency Operation
  • 3A Output Current
  • No Schottky Diode Required
  • 4.5V to 16V Input Voltage Range
  • 0.8V Reference Voltage
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
  • Integrated Internal Compensation
  • Stable with Low ESR Ceramic Output Capacitors
  • Over Current Protection with Hiccup-Mode
  • Thermal Shutdown
  • Inrush Current Limit and Soft Start

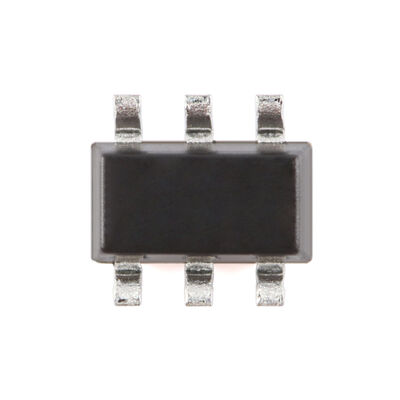

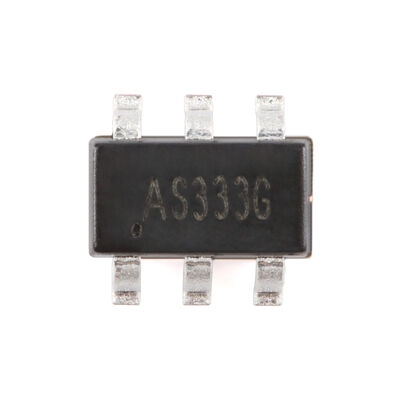

  • Available in SOT23-6 Package
  • -40°C to +85°C Temperature Range
Applications
  • Distributed Power Systems
  • Digital Set Top Boxes
  • Flat Panel Television and Monitors
  • Wireless and DSL Modems
  • Notebook Computers
Pin Configuration
Pin Name Pin Number Description
GND 1 Analog ground pin
SW 2 Switching Pin
VIN 3 Power supply Pin
FB 4 Adjustable version feedback input. Connect FB to the center point of the external resistor divider
EN 5 Drive this pin to a logic-high to enable the IC. Drive to a logic-low to disable the IC and enter micro-power shutdown mode. For automatic start-up, connect EN to VIN using a 200kΩ resistor
BS 6 Bootstrap. A capacitor connected between SW and BS pins is required to form a floating supply across the high-side switch driver
Product Documentation
MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter 0
MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter 1
MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter 2
MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
