TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter

TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter
TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter

Large Image :  TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: TPS51200DRCR
Document: tps51200.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter

Description
Chip Type: DC/DC Converter Operating Voltage: 2.375V~3.5V
Output Channel Count: 1 Topology Structure: Reducing Blood Pressure
Switching Tube (built-in / External): Built-in Operating Temperature Range (°C): -40℃~+85℃@(TA)
Highlight:

DDR termination regulator IC

,

DC/DC converter power management chip

,

Sink source voltage regulator IC

TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter
The TPS51200DRCR is a sink and source DDR termination regulator designed for memory termination applications including DDR, DDR2, DDR3, DDR3L, low-power DDR3, and DDR4 VTT systems.
Key Features
  • Input voltage support for 2.5V and 3.3V rails
  • VLDOIN voltage range: 1.1V to 3.5V
  • Sink and source termination regulator with droop compensation
  • Minimum output capacitance of 20μF (typically 3 × 10μF MLCCs) for memory termination
  • PGOOD output regulation monitoring
  • EN input control
  • REFIN input for flexible tracking via direct connection or resistor divider
  • Remote sensing (VOSNS) capability
  • ±10mA buffered reference (REFOUT)
  • Built-in soft start, UVLO, and OCL protection
  • Thermal shutdown protection
  • 10-Pin VSON package with thermal pad
Applications
  • Memory termination regulator for DDR, DDR2, DDR3, DDR3L, low-power DDR3, and DDR4
  • Notebooks, desktops, and servers
  • Telecom and datacom equipment
  • Base stations
  • LCD-TVs and PDP-TVs
  • Copiers and printers
  • Set-top boxes
Part Number Details
Part Number Package Body Size (Nominal)
TPS51200 VSON (10) 3.00mm × 3.00mm

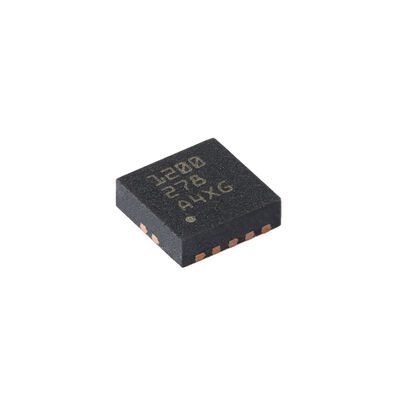

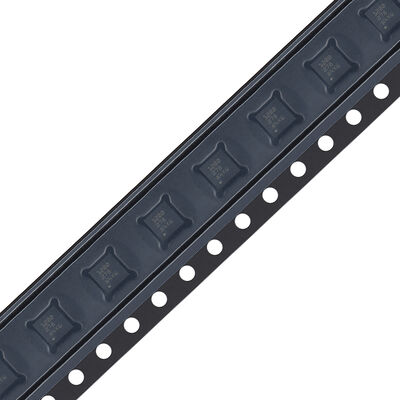

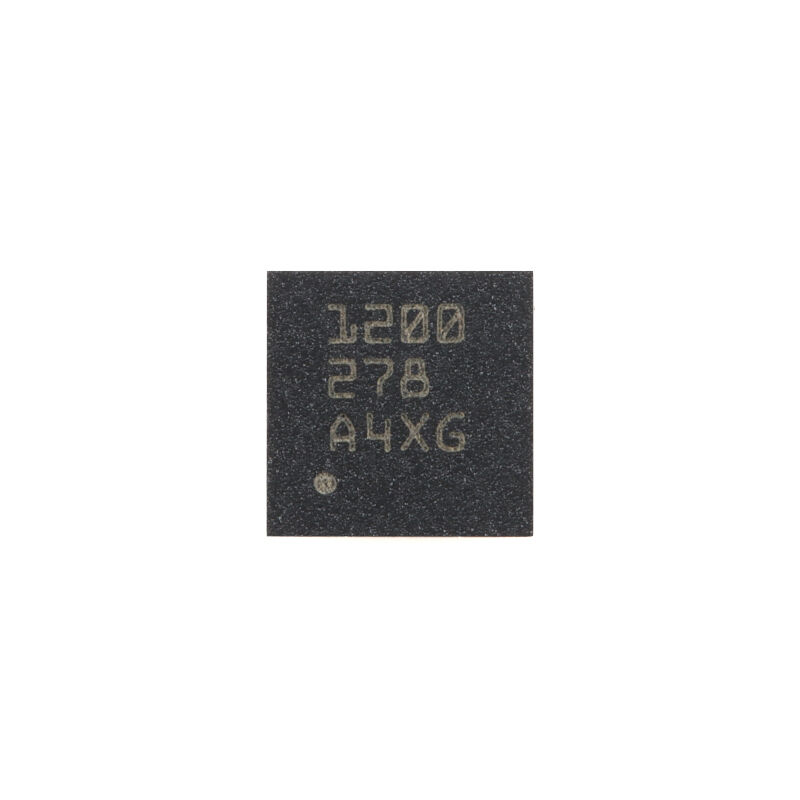

Product Images
TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter 0 TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter 1 TPS51200DRCR Sink and Source DDR Termination Regulator DC/DC Converter 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
