GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz

GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz
GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz

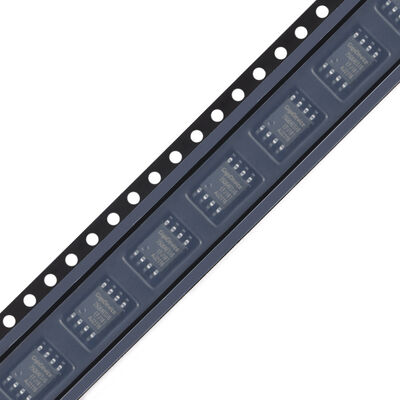

Large Image :  GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD25Q64ESIG
Document: C2831359_BCFE71AD549651B3F6...CB.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz

Description
Chip Erase Time:: 25s Typica Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 128Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 500us
Highlight:

GD25Q64ESIG SPI Flash memory

,

Uniform Sector NOR FLASH

,

Dual Quad Serial Flash 133MHz

GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz
FEATURES
  • 64M-bit Serial Flash
    • 8192K-Byte
    • 256 Bytes per programmable page
  • Standard, Dual, Quad SPI
    • Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
    • Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
    • Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
  • High Speed Clock Frequency
    • 133MHz for fast read
    • Dual I/O Data transfer up to 266Mbits/s
    • Quad I/O Data transfer up to 532Mbits/s
  • Software/Hardware Write Protection
    • Write protect all/portion of memory via software
    • Enable/Disable protection with WP# Pin
    • Top/Bottom Block protection
  • Endurance and Data Retention
    • Minimum 100,000 Program/Erase Cycles
    • 20-year data retention typical
  • Fast Program/Erase Speed
    • Page Program time: 0.5ms typical
    • Sector Erase time: 45ms typical
    • Block Erase time: 0.15s/0.25s typical
    • Chip Erase time: 25s typical
  • Flexible Architecture
    • Uniform Sector of 4K-Byte
    • Uniform Block of 32/64K-Byte
  • Low Power Consumption
    • 12μA typical standby current
    • 1μA typical deep power down current
  • Advanced Security Features
    • 128-bit Unique ID for each device
    • Serial Flash Discoverable parameters (SFDP) register
    • 3x1024-Byte Security Registers With OTP Locks
  • Single Power Supply Voltage
    • Full voltage range: 2.7-3.6V
Memory Structure
Each device has Each block has Each sector has Each page has
8M 64/32K 4K 256 Bytes
32K 256/128 16 - pages
2K 16/8 - - sectors
128/256 - - - blocks

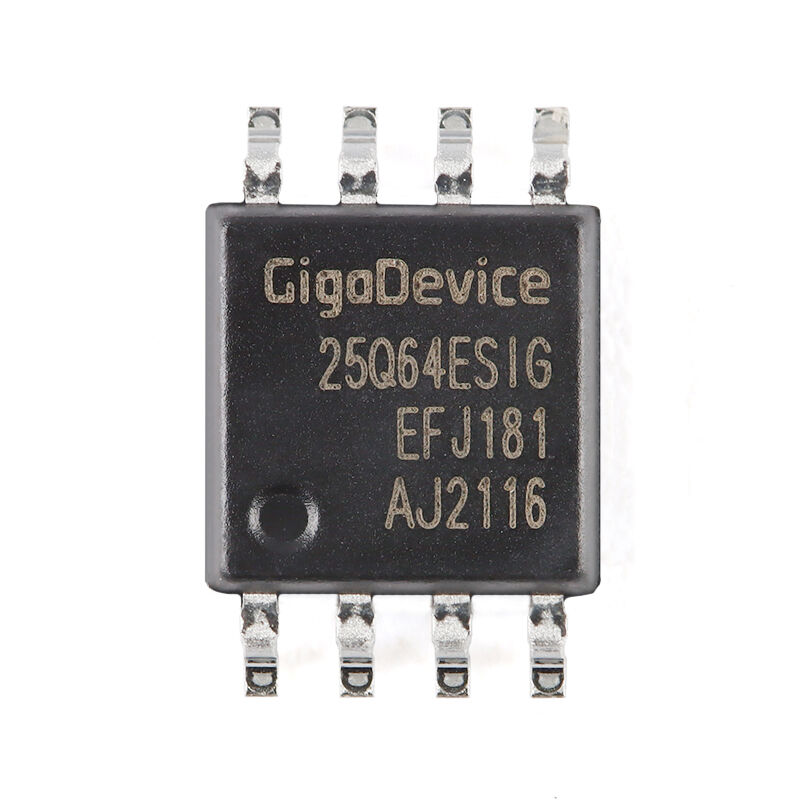

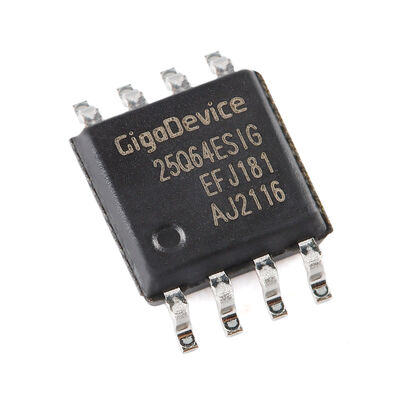

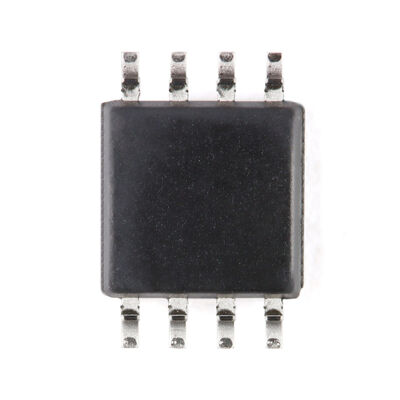

GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz 0

GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz 1GD25Q64ESIG Uniform Sector Dual And Quad Serial Flash SPI 500us 133MHz 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
