M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface

M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface
M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface

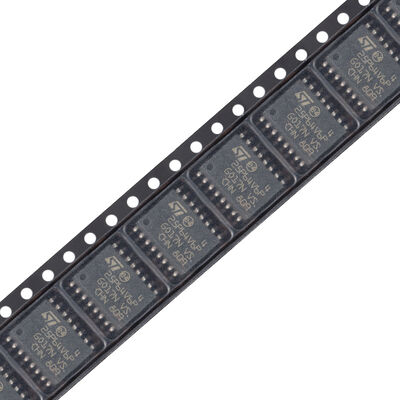

Large Image :  M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: M25P64-VMF6TP
Document: C524848_D623419FB8090215336...1D.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 64Mbit
Clock Frequency (fc): 75MHz Page Write Time (Tpp): 1.4ms
Highlight:

64 Mbit NOR FLASH memory

,

Low voltage serial flash memory

,

75 MHz SPI NOR FLASH

M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memory
64 Mbit Serial Flash Memory with 75 MHz SPI Bus Interface, designed for low voltage operation from 2.7V to 3.6V.
Key Features
  • 64 Mbit of Flash memory capacity
  • 2.7V to 3.6V single supply voltage operation
  • SPI bus compatible serial interface
  • 75 MHz maximum clock rate
  • Page Program up to 256 Bytes in 1.4 ms (typical)
  • Enhanced programming with VPP = 9V in 0.35 ms (typical)
  • Sector Erase (512 Kbit) and Bulk Erase (64 Mbit) capabilities
  • Electronic Signatures: JEDEC standard two-Byte signature (2017h)
  • RES instruction, one-Byte signature (16h) for backward compatibility
  • Unique ID code (UID) with 16 bytes readonly (available upon request)
  • Hardware Write Protection with three non-volatile bits (BP0, BP1, BP2)
  • Over 100,000 Erase/Program cycles per sector
  • More than 20-year data retention
  • RoHS compliant packaging
  • Automotive certified parts available
Pin Configuration
Signal Name Function Direction
C Serial Clock Input Input
D Serial Data Input Input
Q Serial Data Output Output
S Chip Select Input Input
W/VPP Write Protect/Enhanced Program Supply Voltage Input
HOLD Hold Input Input
VCC Supply Voltage -
VSS Ground -

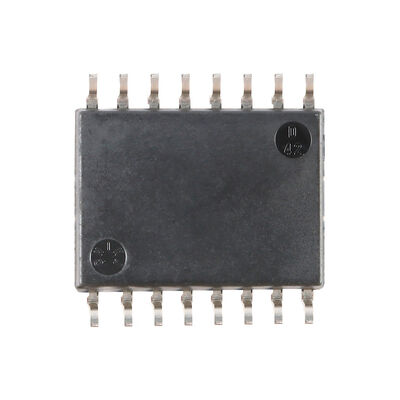

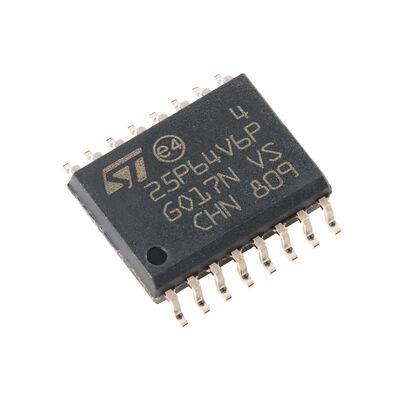

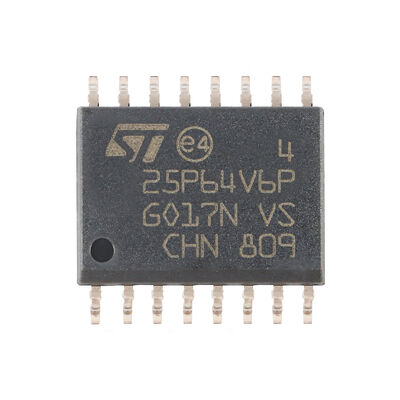

Product Images
M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface 0 M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface 1 M25P64-VMF6TP NOR FLASH 64 Mbit Low Voltage Serial Flash Memorywith 75 MHz SPI Bus Interface 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
