W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI

W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI
W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI

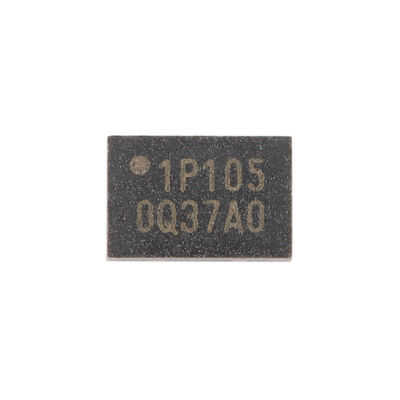

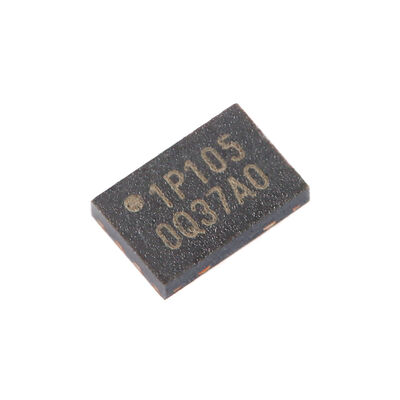

Large Image :  W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI

Product Details:
Place of Origin: CN
Brand Name: Winbond
Certification: rohs
Model Number: W25Q16JVUXIQ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

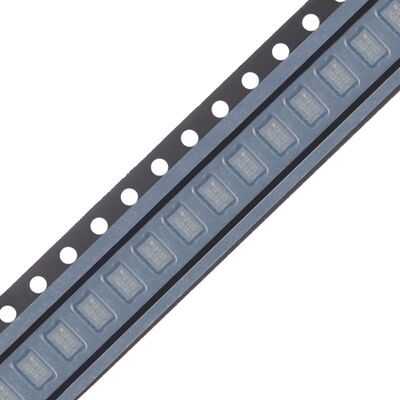

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 16Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 3ms
Highlight:

NOR FLASH memory 16M-bit

,

3V serial flash memory

,

NOR FLASH with Dual/Quad SPI

W25Q16JVUXIQ NOR FLASH 3V 16M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI
High-performance 16M-bit serial flash memory supporting standard, dual, and quad SPI interfaces for efficient data storage and transfer.
Key Features
SpiFlash Memory Family
  • W25Q16JV: 16M-bit / 2M-byte capacity
  • Standard SPI interface: CLK, /CS, DI, DO
  • Dual SPI interface: CLK, /CS, IO0, IO1
  • Quad SPI interface: CLK, /CS, IO0, IO1, IO2, IO3
  • Software & Hardware Reset functionality
High Performance Specifications
  • 133MHz Single, Dual/Quad SPI clock speeds
  • 266/532MHz equivalent Dual/Quad SPI performance
  • 66MB/s continuous data transfer rate
  • Minimum 100K Program-Erase cycles per sector
  • Over 20-year data retention
Continuous Read Efficiency
  • Continuous Read with 8/16/32/64-Byte Wrap
  • As few as 8 clocks to address memory
  • True XIP (execute in place) operation capability
  • Outperforms X16 Parallel Flash
Power & Temperature Specifications
  • Single 2.7V to 3.6V power supply
  • <1µA typical power-down consumption
  • -40°C to +85°C operating range
  • -40°C to +105°C extended operating range
Flexible Architecture
  • 4KB sector-based architecture
  • Uniform Sector/Block Erase (4K/32K/64K-Byte)
  • Program 1 to 256 bytes per programmable page
  • Erase/Program Suspend & Resume functionality
Advanced Security Features
  • Software and Hardware Write-Protect
  • Special OTP (One-Time Programmable) protection
  • Top/Bottom, Complement array protection
  • Individual Block/Sector array protection
  • 64-Bit Unique ID for each device
  • Discoverable Parameters (SFDP) Register
  • 3x256-Bytes Security Registers
  • Volatile & Non-volatile Status Register Bits

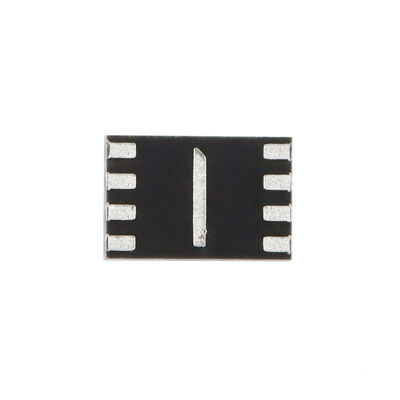

Pin Configuration
PIN NO. PIN NAME I/O FUNCTION
1 /HOLD or /RESET (IO3) I/O Hold or Reset Input (Data Input Output 3)
2 VCC Power Supply
3 /RESET I Reset Input
4 N/C No Connect
5 N/C No Connect
6 N/C No Connect
7 /CS I Chip Select Input
8 DO (IO1) I/O Data Output (Data Input Output 1)
9 /WP (IO2) I/O Write Protect Input (Data Input Output 2)
10 GND Ground
11 N/C No Connect
12 N/C No Connect
13 N/C No Connect
14 N/C No Connect
15 DI (IO0) I/O Data Input (Data Input Output 0)
16 CLK I Serial Clock Input

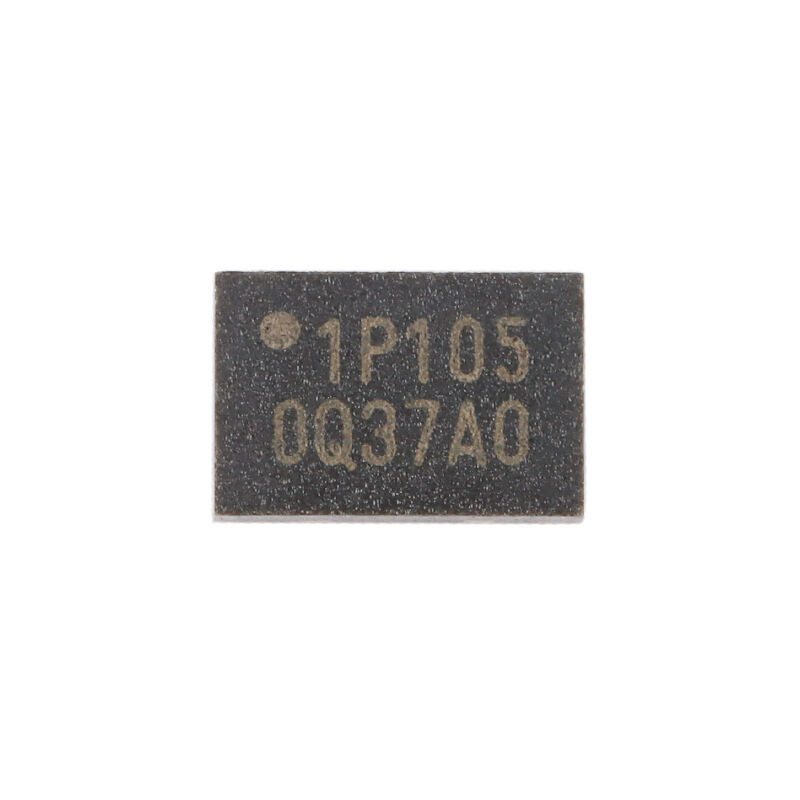

W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI 0 W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI 1 W25Q16JVUXIQ NOR FLASH 3V 16M-BITSERIAL FLASH MEMORY WITHDUAL/QUAD SPI 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
