TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function

TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function
TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function

Large Image :  TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: TPS3820-33DBVR
Document: tps3820.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function

Description
Chip Type: Voltage Monitor Operating Voltage: 5V；2.5V；3V；3.3V
Reset Timeout: 25ms Static Current (Iq): 15uA
Voltage Threshold: 2.93V Operating Temperature Range (°C): -40℃~+85℃
Highlight:

TPS3820-33DBVR voltage monitor with watchdog timer

,

Push-pull voltage monitor with manual reset

,

Low-level effective reset IC

TPS3820-33DBVR Voltage Monitor With Watchdog Timer
Low-level effective, push-pull voltage monitor (reset IC) with manual reset function for reliable system supervision and recovery.
Key Features
  • Power-on reset generator with fixed delay time: 200ms (TPS3823, TPS3824, TPS3825, TPS3828) or 25ms (TPS3820)
  • Manual reset input (TPS3820, TPS3823, TPS3825, TPS3828)
  • Multiple reset output configurations: active-low, active-high, and open drain
  • Supply voltage supervision range: 2.5V, 3V, 3.3V, 5V
  • Integrated watchdog timer (TPS3820, TPS3823, TPS3824, TPS3828)
  • Low supply current: 15μA (typical)
  • Compact 5-pin SOT-23 package
  • Operating temperature range: −40°C to 85°C (−40°C to 125°C for TPS3823A-33)
Applications
  • DSPs, microcontrollers, and microprocessors
  • Industrial equipment and programmable controls
  • Portable and battery-powered equipment
  • Wireless communications systems
  • Notebook and desktop computers
Device Specifications
Part Number Package Body Size (Nominal)
TPS382x SOT-23 (5) 2.90mm × 1.60mm
Device Configuration Matrix
Device Reset Reset WDI MR
TPS3820 Push-pull X X
TPS3823 Push-pull X X
TPS3823A Push-pull X X
TPS3824 Push-pull Push-pull X
TPS3825 Push-pull Push-pull X
TPS3828 Open-drain X X
Product Images

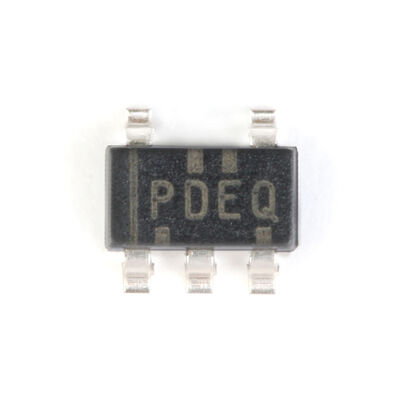

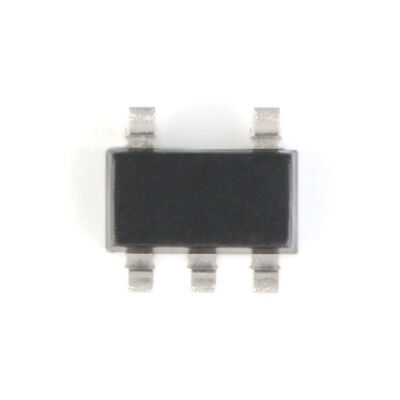

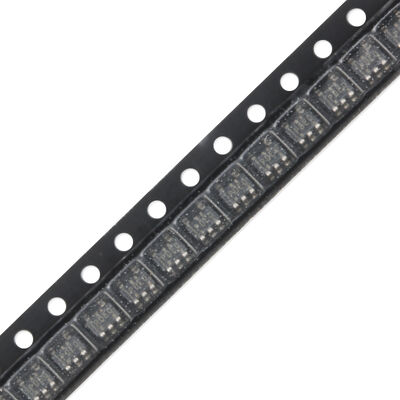

TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function 0 TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function 1 TPS3820-33DBVR Voltage Monitor With Watchdog Timer Low-level Effective, Push-pull Voltage Monitor (reset IC) With Manual Reset Function 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
