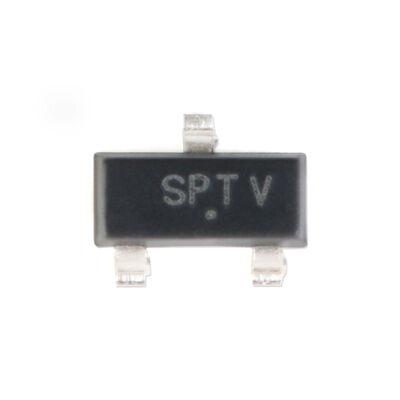

MAX809STRG Very Low Supply Current3-Pin MicroprocessorReset Monitors Cost−effective System Supervisorcircuits Designed To Monitor VCC In Digital Systems And Provide A Resetsignal To The Host Processor

Large Image : MAX809STRG Very Low Supply Current3-Pin MicroprocessorReset Monitors Cost−effective System Supervisorcircuits Designed To Monitor VCC In Digital Systems And Provide A Resetsignal To The Host Processor

Product Details:

Place of Origin:	CN
Brand Name:	onsemi
Certification:	rohs
Model Number:	MAX809STRG
Document:	1498635293483.PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

MAX809STRG Very Low Supply Current3-Pin MicroprocessorReset Monitors Cost−effective System Supervisorcircuits Designed To Monitor VCC In Digital Systems And Provide A Resetsignal To The Host Processor

Description

Voltage Threshold:	2.93V	Number Of Monitored Voltages:	1
Reset Timeout:	140ms	Quiescent Current (Iq):	500nA
Operating Voltage:	1V~5.5V	Operating Temperature Range (°C):	-40℃~+125℃
Highlight:	MAX809STRG microprocessor reset monitor , 3-pin low supply current supervisor , cost-effective VCC monitoring power chip

MAX809STRG Very Low Supply Current 3-Pin Microprocessor Reset Monitor

Cost-effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor.

Key Features

Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
Four Guaranteed Minimum Power-On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)
RESET Output Guaranteed to VCC = 1.0 V
Low Supply Current
Compatible with Hot Plug Applications
VCC Transient Immunity
No External Components Required
Wide Operating Temperature: −40°C to 105°C
Pb-Free and RoHS Compliant

Typical Applications

Computers, Embedded Systems, Battery Powered Equipment, Critical Microprocessor Power Supply Monitoring

Pin Configuration

Pin No.	Symbol	Description
1	GND	Ground
2	RESET (MAX809)	RESET output remains low while VCC is below the reset voltage threshold, and for a reset timeout period after VCC rises above reset threshold
2	RESET (MAX810)	RESET output remains high while VCC is below the reset voltage threshold, and for a reset timeout period after VCC rises above reset threshold
3	VCC	Supply Voltage (Typ)
