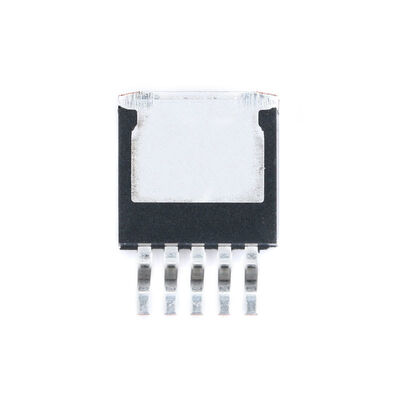

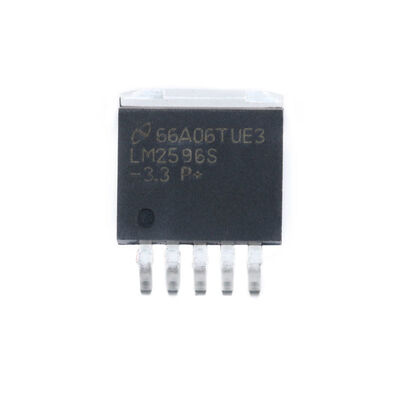

LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions

LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions
LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions

Large Image :  LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions

Product Details:
Place of Origin: CN
Brand Name: TECH PUBLIC
Certification: rohs
Model Number: LM2596SX-3.3
Document: 9567ADE6BADF0FFFE9F6528F462...1C.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions

Description
Chip Type: DC-DC Power Chip Operating Voltage: 4.75V~40V
Switching Frequency: 150kHz Number Of Battery Cells: 1
Woridng Temperature: -40℃~+125℃ Static Current (lq): -
Highlight:

LM2596SX-3.3 step-down DC-DC converter

,

3A switching regulator with warranty

,

150kHz step-down power management chip

LM2596SX-3.3 3A / 150kHz Step-Down DC-DC Converter
The LM2596SX-3.3 is a step-down switching regulator that integrates all required active functions for efficient DC-DC conversion. This 3A, 150kHz converter provides reliable power regulation with comprehensive protection features.
Key Features
  • Fixed output voltage: 3.3V, 5V & adjustable version available
  • Adjustable output voltage range: 1.23V~38.5V
  • 150kHz fixed switching frequency
  • Voltage mode non-synchronous PWM control
  • Thermal shutdown and current limit protection
  • ON/OFF shutdown control input
  • Short circuit protection (SCP)
  • Operating voltage up to 40V
  • Output load current: 3A

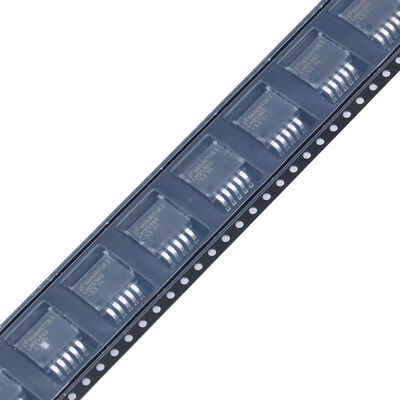

Product Variants & Packaging
Output Voltage Part Number Package
3.3V LM2596SX-3.3 TO-263-5L (D2PAK) | 500pcs/13" Reel
5.0V LM2596SX-5.0 TO-263-5L (D2PAK) | 500pcs/13" Reel
Adjustable LM2596SX-ADJ TO-263-5L (D2PAK) | 500pcs/13" Reel
LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions 0 LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions 1 LM2596SX-3.3 3A /150kHz Step-Down DC-DC Converter Step-down Switching RegulatorSwith All Required Active Functions 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
