XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter

XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter
XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter

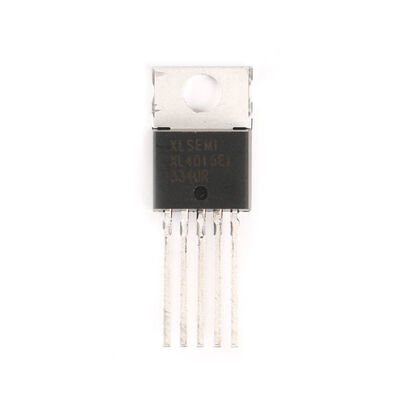

Large Image :  XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter

Product Details:
Place of Origin: CN
Brand Name: XLSEMI
Certification: rohs
Model Number: XL4016E1
Document: BA256A5392B705775B4C335FAFB...CF.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter

Description
Chip Type: DC-DC Power Chip Operating Voltage: 8V~36V
Switching Frequency: 144kHz~216kHz Number Of Battery Cells: 12A
Woridng Temperature: -40℃~+125℃ Static Current (lq): 2.1mA
Highlight:

XL4016E1 step-down DC-DC converter

,

40V switched current converter

,

180KHz power management chip

XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter
The XL4016E1 is a high-performance step-down DC-DC converter featuring a 180KHz switching frequency and 40V operating capability, designed for efficient power conversion in industrial and electronic applications.
Key Features
  • Recommended operating voltage range: 8V to 36V
  • Output voltage adjustable from 1.25V to 32V
  • Maximum duty cycle: 100%
  • Minimum drop voltage: 0.3V
  • Fixed 180KHz switching frequency
  • Maximum 12A switching current
  • Built-in power MOSFET
  • Efficiency up to 96%
  • Excellent linearity and load regulation
  • Built-in thermal shutdown protection
  • Built-in current limiting function
  • Built-in output short circuit protection
  • TO220-5L package
Applications
• LCD TV and display screens
• Portable instrument power supply
• Communication equipment power supply
Related Part Numbers
Part Number Alternative Package
XL4016E1 XL4016E1 TO220-5L
Product Images

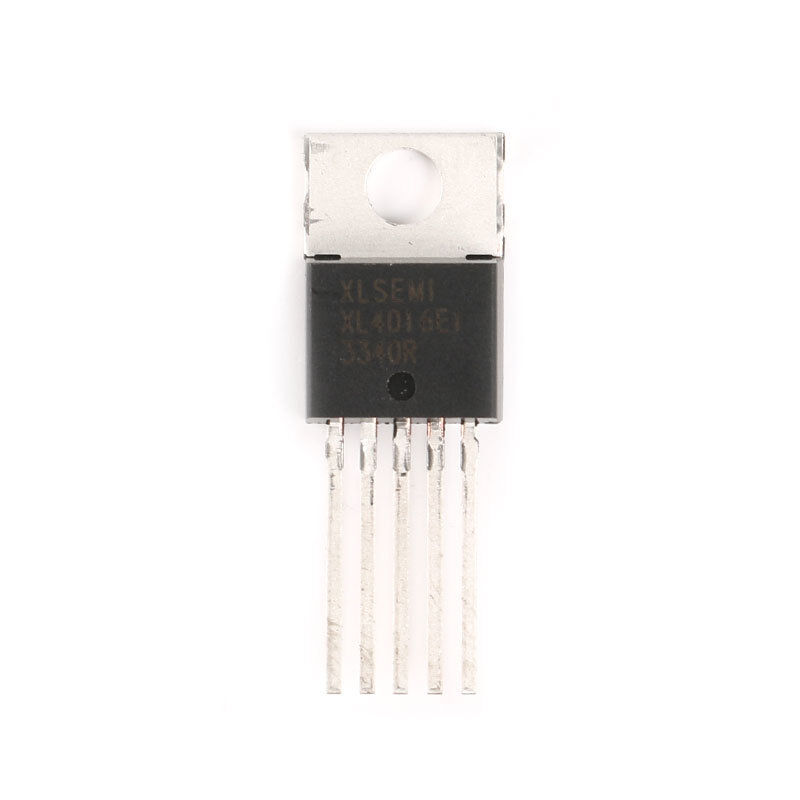

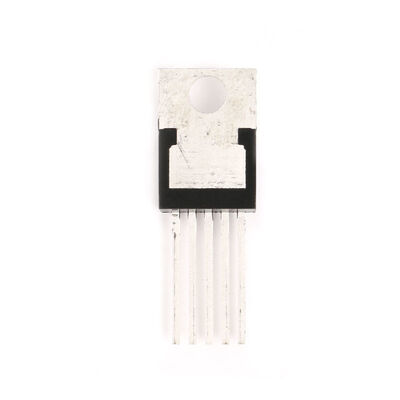

XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter 0 XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter 1 XL4016E1 180KHz 40V Switched Current Step-Down DC-DC Converter 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
