L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge

L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge
L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge

Large Image :  L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: L6599DTR
Document: 1457707090654.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge

Description
Chip Type: AC-DC Controllers And Voltage Regulators Operating Voltage: 8.85V~17.9V
Switching Frequency: 61.8kHz~250kHz Number Of Battery Cells: -
Woridng Temperature: -40℃~+150℃ Static Current (lq): -
Highlight:

L6599DTR resonant controller

,

high-voltage half-bridge controller

,

variable frequency power management chip

L6599DTR High-voltage Resonant Controller
50% duty cycle, variable frequency control of resonant half-bridge for efficient power conversion applications.
Key Features
  • 50% duty cycle, variable frequency control of resonant half-bridge
  • High-accuracy oscillator
  • Up to 500 kHz operating frequency
  • Two-level OCP: frequency-shift and latched shutdown
  • Interface with PFC controller
  • Latched disable input
  • Burst-mode operation at light load
  • Input for power-ON/OFF sequencing or brownout protection
  • Non-linear soft-start for monotonic output voltage rise
  • 600 V-rail compatible high-side gate driver with integrated bootstrap diode and high dV/dt immunity
  • -300/800 mA high-side and low-side gate drivers with UVLO pull-down
  • Available in DIP-16 and SO-16N packages
Ordering Information
Order Code Package Packaging
L6599D SO-16N Tube
L6599DTR SO-16N Tape and reel
L6599N DIP-16 Tube
Applications
  • LCD and PDP TV
  • Desktop PC, entry-level server
  • Telecom SMPS
  • AC-DC adapter, open frame SMPS

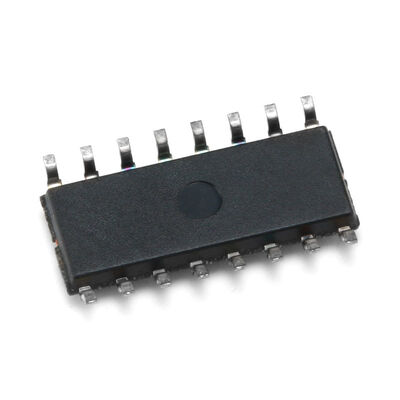

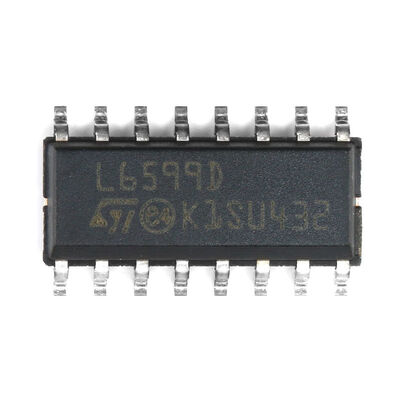

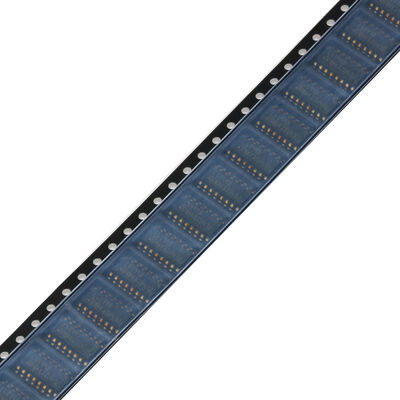

Product Images
L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge 0 L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge 1 L6599DTR High-voltage Resonant Controller 50 % Duty Cycle Variable Frequency Control Ofresonant Half-bridge 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
