MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch

MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch

Large Image :  MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch

Product Details:
Place of Origin: CN
Brand Name: AEROSEMI
Certification: rohs
Model Number: MT9700
Document: 1492481333031.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch

Description
Chip Type: Power-Distribution Switch Operating Voltage: 2.4V~5.5V
Reset Timeout: 25ms Maximum Continuous Current: 2A
On-resistance: 80mΩ Operating Temperature Range (°C): -40℃~+85℃
Highlight:

adjustable current-limited power switch

,

fast response power distribution chip

,

80mΩ power management IC

MT9700 80mΩ Adjustable Fast Response Current-Limited Power-Distribution Switch
The MT9700 is an 80mΩ adjustable fast response current-limited power-distribution switch designed for high-performance power management applications.
Product Features
  • Compliant to USB Specifications
  • Integrated 80mΩ Power MOSFET
  • Low Supply Current: 15μA Typical at Switch On State, 1μA Typical at Switch Off State
  • Wide Input Voltage Range: 2.4V to 5.5V
  • Fast Transient Response: <2μs
  • Reverse Current Flow Blocking
  • Thermal Shutdown Protection
  • Hot Plug-In Application (Soft-Start)
  • Available in a 5-Pin SOT23-5 Package
Applications
  • USB Bus/Self Powered Hubs
  • USB Peripherals
  • Notebook Computers
  • Battery-Charger Circuits
  • Personal Communication Devices
Current Setting Configuration
SET (mA) RSET (kΩ)
600 11.3
800 8.45
1000 6.8
1500 4.53
2000 3.4

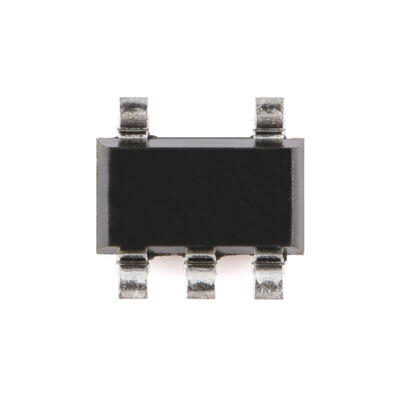

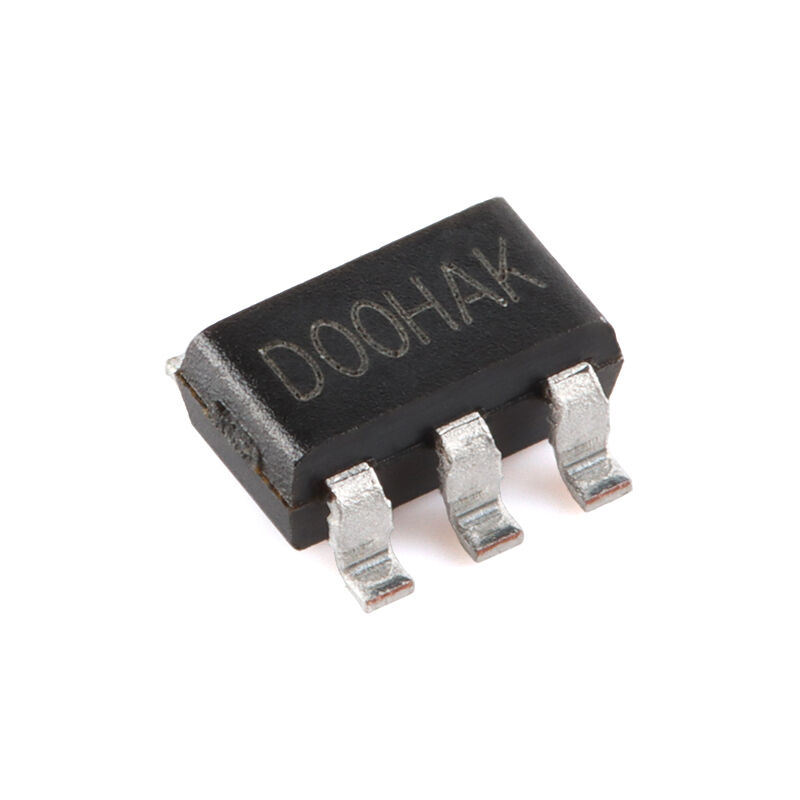

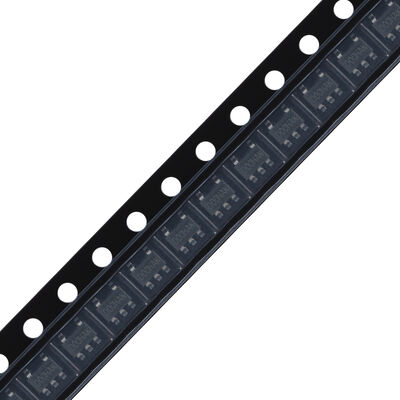

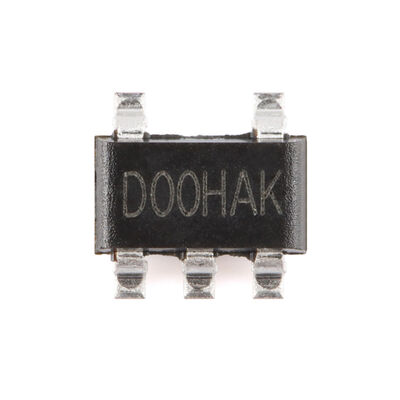

Product Images
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch 0 MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch 1 MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch 2 MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
