MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter

MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter
MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter

Large Image :  MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter

Product Details:
Place of Origin: CN
Brand Name: AEROSEMI
Certification: rohs
Model Number: MT9284-28J
Document: C53C6CC6FDE0844702943206B8A...47.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter

Description
Chip Type: DC/DC Converter Operating Voltage: 2.2V~16V
Switching Frequency: 1.2MHz Static Current (Iq): 100uA
Output Control Terminals: 1 Operating Temperature Range (°C): -40℃~+85℃
Highlight:

2.5A step-up DC/DC converter

,

1.2MHz current mode converter

,

high efficiency power management chip

MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter
The MT36291 is a high-efficiency step-up DC/DC converter featuring an integrated 80mΩ power MOSFET and operating at a fixed 1.2MHz switching frequency. This converter delivers up to 2.5A output current with efficiency reaching 93%, making it ideal for power-sensitive applications.
Key Features
  • Integrated 80mΩ Power MOSFET
  • 2.2V to 16V Input Voltage Range
  • 1.2MHz Fixed Switching Frequency
  • Adjustable Over Current Protection: 0.5A~2.5A
  • Internal 2.5A Switch Current Limit (OC pin floating)
  • Adjustable Output Voltage
  • Internal Compensation
  • Over Voltage Protection
  • Up to 20V Output Voltage
  • Automatic Pulse Frequency Modulation Mode at Light Loads
  • Up to 93% Efficiency
  • Available in 6-Pin SOT23-6 Package
Applications
  • Battery-Powered Equipment
  • Set-Top Boxes
  • LCD Bias Supply
  • DSL and Cable Modems and Routers
  • Networking cards powered from PCI or PCI express slots
Pin Configuration
Pin Name Pin Number Description
SW 1 Power Switch Output. SW is the drain of the internal MOSFET switch. Connect the power inductor and output rectifier to SW. SW can swing between GND and 22V.
GND 2 Ground Pin
FB 3 Feedback Input. The FB voltage is 0.6V. Connect a resistor divider to FB.
EN 4 Regulator On/Off Control Input. A high input at EN turns on the converter, and a low input turns it off. When not used, connect EN to the input supply for automatic startup.
VIN 5 Input Supply Pin. Must be locally bypassed.
OC 6 Adjustable Current Limit (Floating Available).
Product Images

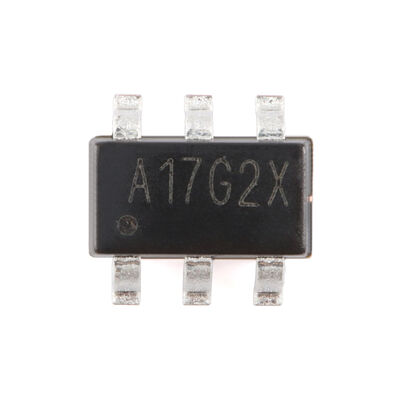

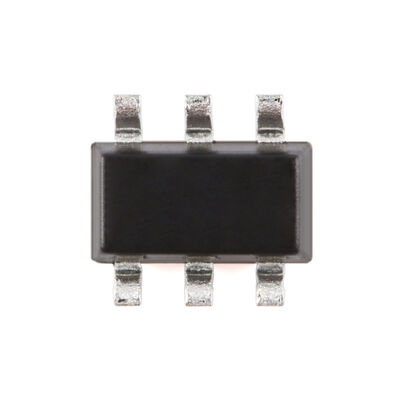

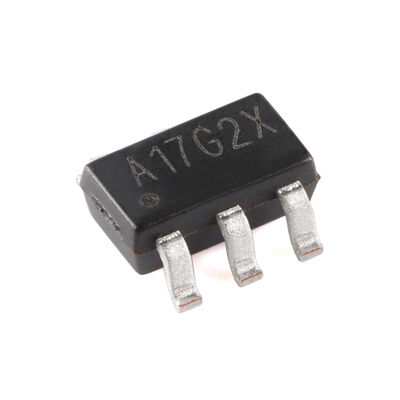

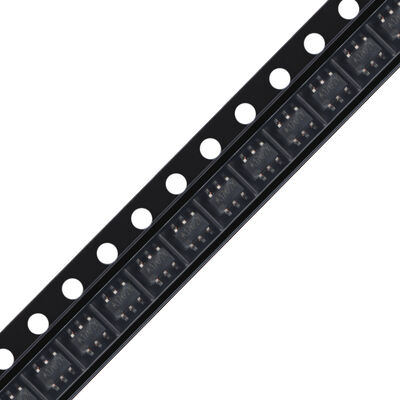

MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter 0 MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter 1 MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter 2 MT36291 2.5A High Efficiency 1.2MHz Current Mode Step-Up DC/DC Converter 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
