MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter

MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter
MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter

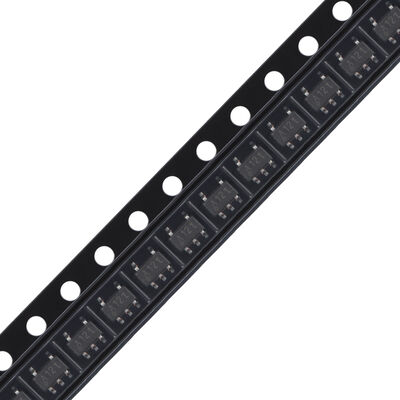

Large Image :  MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter

Product Details:
Place of Origin: CN
Brand Name: AEROSEMI
Certification: rohs
Model Number: MT3406
Document: 11CF4F05DFC4AC07D3B1C3A6F13...74.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter

Description
Chip Type: DC/DC Converter Operating Voltage: 2V~6V
Switching Frequency: 1.5MHz Static Current (Iq): 10uA
Output Control Terminals: 1 Operating Temperature Range (°C): -40℃~+85℃
Highlight:

MT3406 step-down converter chip

,

1.5MHz synchronous power converter

,

2V-6V input voltage regulator

MT3406 1A 2V-6V Input 1.5MHz Synchronous Step-Down Converter
The MT3406 is a high-efficiency synchronous step-down converter capable of delivering up to 1A output current with input voltage range from 2V to 6V.
Key Features
  • High Efficiency: Up to 96%
  • 1.5MHz Constant Frequency Operation
  • 1A Output Current Capability
  • No Schottky Diode Required
  • 2V to 6V Input Voltage Range
  • Output Voltage as Low as 0.6V
  • PFM Mode for High Efficiency in Light Load Conditions
  • 100% Duty Cycle in Dropout Operation
  • Low Quiescent Current: 10μA
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
  • Short Circuit Protection
  • Thermal Fault Protection
  • Inrush Current Limit and Soft Start
  • <1μA Shutdown Current

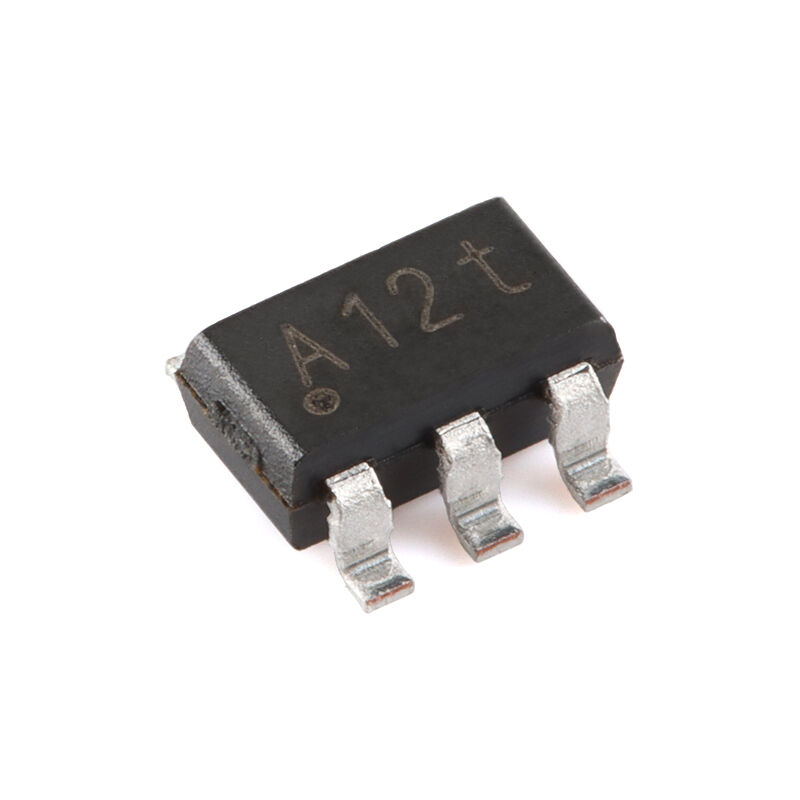

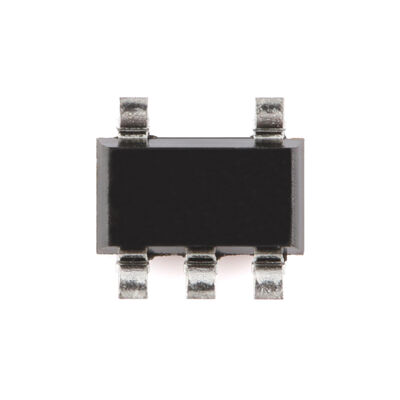

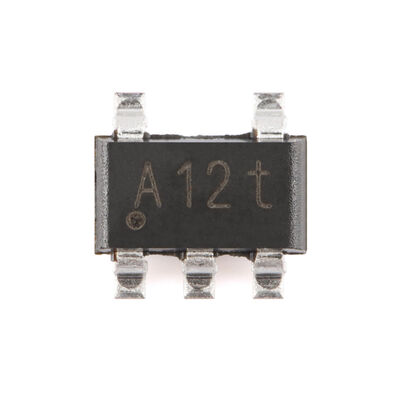

  • SOT23-5 Package
Applications
  • Cellular and Smart Phones
  • Wireless and DSL Modems
  • PDAs
  • Portable Instruments
  • Digital Still and Video Cameras
  • DTV
Pin Description
Pin Name Pin Number Description
EN 1 Chip Enable Pin. Drive EN above 1.5V to turn on the part. Drive EN below 0.3V to turn it off. Do not leave EN floating.
GND 2 Analog ground pin.
SW 3 Power Switch Output. It is the switch node connection to Inductor. This pin connects to the drains of the internal P-ch and N-ch MOSFET switches.
VIN 4 Power Supply Input. Must be closely decoupled to GND with a 4.7µF or greater ceramic capacitor.
FB 5 Output Voltage Feedback Pin. An internal resistive divider divides the output voltage down for comparison to the internal reference voltage.
MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter 0 MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter 1 MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter 2 MT3406 1A 2V-6V Input 1.5MHzSynchronous Step-Down Converter 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
