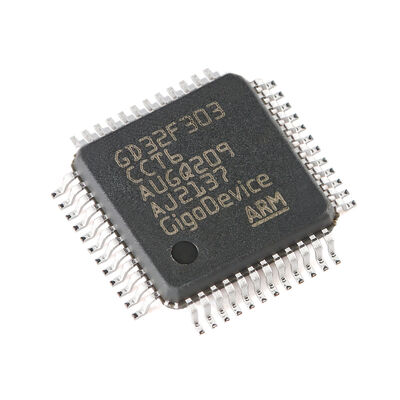

GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core

GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core
GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core

Large Image :  GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32F303CCT6
Document: C962266_C69E7B0D02FF78C0A71...1A.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core

Description
Product Category:: MCU Max Speed (MHz): 120MHz
Flash (Bytes): 256KB ADC: 12bit
DAC: 12bit Operating Voltage: 2.6V~3.6V
Number Of I/Os:: 37
Highlight:

GD32F303CCT6 Cortex-M4 microcontroller

,

ARM Cortex-M4 32-bit MCU

,

general-purpose microcontroller with RISC core

GD32F303CCT6 ARM Cortex-M4 32-bit Microcontroller
ARM Cortex-M4 32-bit general-purpose microcontroller based on the ARM® Cortex®-M4 RISC core, designed for industrial applications requiring high performance and reliability.
Key Features
  • Internal 8 MHz factory-trimmed RC and external 4 to 32 MHz crystal oscillator
  • Internal 48 MHz RC oscillator
  • Internal 40 kHz RC calibrated oscillator and external 32.768 kHz crystal oscillator
  • 2.6 to 3.6 V application supply and I/Os
  • Supply Supervisor: POR (Power On Reset), PDR (Power Down Reset), and low voltage detector (LVD)
Ordering Information
Ordering Code Flash (KB) Package Package Type Temperature Range
GD32F303CCT6256LQFP48GreenIndustrial-40°C to +85°C
GD32F303CET6512LQFP48GreenIndustrial-40°C to +85°C
GD32F303CGT61024LQFP48GreenIndustrial-40°C to +85°C
GD32F303RCT6256LQFP64GreenIndustrial-40°C to +85°C
GD32F303RET6512LQFP64GreenIndustrial-40°C to +85°C
GD32F303RGT61024LQFP64GreenIndustrial-40°C to +85°C
GD32F303RIT62048LQFP64GreenIndustrial-40°C to +85°C
GD32F303RKT63072LQFP64GreenIndustrial-40°C to +85°C
GD32F303VCT6256LQFP100GreenIndustrial-40°C to +85°C
GD32F303VET6512LQFP100GreenIndustrial-40°C to +85°C
GD32F303VET7512LQFP100GreenIndustrial-40°C to +105°C
GD32F303VGT61024LQFP100GreenIndustrial-40°C to +85°C
GD32F303VIT62048LQFP100GreenIndustrial-40°C to +85°C
GD32F303VKT63072LQFP100GreenIndustrial-40°C to +85°C
GD32F303ZCT6256LQFP144GreenIndustrial-40°C to +85°C
GD32F303ZET6512LQFP144GreenIndustrial-40°C to +85°C
GD32F303ZGT61024LQFP144GreenIndustrial-40°C to +85°C
GD32F303ZIT62048LQFP144GreenIndustrial-40°C to +85°C
GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core 0 GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core 1 GD32F303CCT6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M4 RISC Core 2
