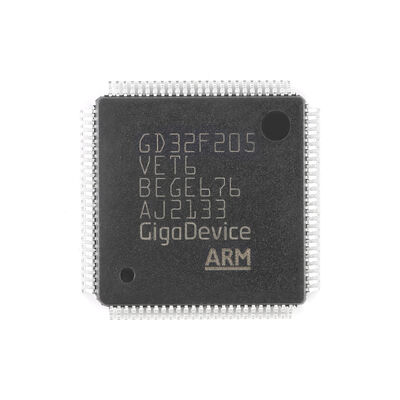

GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core

GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core
GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core

Large Image :  GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD32F205VET6
Document: 620EEA2CEA1152CE2C23D3B4AA2...28.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core

Description
Product Category:: MCU Max Speed (MHz): 120MHz
Flash (Bytes): 512KB ADC: 12bit
DAC: 12bit Operating Voltage: 2.6V~3.6V
Number Of I/Os:: 82
Highlight:

GD32F205VET6 ARM Cortex-M3 microcontroller

,

32-bit general-purpose microcontroller

,

ARM Cortex-M3 RISC core MCU

GD32F205VET6 ARM Cortex-M3 32-bit Microcontroller
The GD32F205VET6 is a high-performance 32-bit general-purpose microcontroller based on the ARM® Cortex®-M3 RISC core. This advanced processor delivers outstanding computational performance with optimized power consumption, making it ideal for embedded systems applications.
Core Processor Features
  • 32-bit ARM® Cortex®-M3 processor core operating at up to 120 MHz
  • Single-cycle multiplication and hardware divider for enhanced performance
  • Integrated Nested Vectored Interrupt Controller (NVIC) for efficient interrupt handling
  • 24-bit SysTick timer for precise timing operations
  • Based on ARMv7 architecture supporting both Thumb and Thumb-2 instruction sets
Advanced System Peripherals
  • Internal Bus Matrix with ICode bus, DCode bus, system bus, and Private Peripheral Bus (PPB)
  • Flash Patch and Breakpoint (FPB) for debugging capabilities
  • Data Watchpoint and Trace (DWT) for real-time data monitoring
  • Instrument Trace Macrocell (ITM) for advanced tracing
  • Memory Protection Unit (MPU) for enhanced security
  • Serial Wire JTAG Debug Port (SWJ-DP) for comprehensive debugging
  • Trace Port Interface Unit (TPIU) for system analysis
Product Ordering Information
Ordering Code Flash (KB) Package Package Type Temperature Range
GD32F205RCT6256LQFP64Green Industrial-40°C to +85°C
GD32F205RET6512LQFP64Green Industrial-40°C to +85°C
GD32F205RGT61024LQFP64Green Industrial-40°C to +85°C
GD32F205RKT63072LQFP64Green Industrial-40°C to +85°C
GD32F205VCT6256LQFP100Green Industrial-40°C to +85°C
GD32F205VET6512LQFP100Green Industrial-40°C to +85°C
GD32F205VGT61024LQFP100Green Industrial-40°C to +85°C
GD32F205VKT63072LQFP100Green Industrial-40°C to +85°C
GD32F205ZCT6256LQFP144Green Industrial-40°C to +85°C
GD32F205ZET6512LQFP144Green Industrial-40°C to +85°C
GD32F205ZGT61024LQFP144Green Industrial-40°C to +85°C
GD32F205ZKT63072LQFP144Green Industrial-40°C to +85°C
GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core 0 GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core 1 GD32F205VET6 ARM Cortex-M3 32-bit General-purpose Microcontroller Based On The ARM® Cortex®-M3 RISC Core 2
Packaging & Shipping
Standard export packaging is available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
