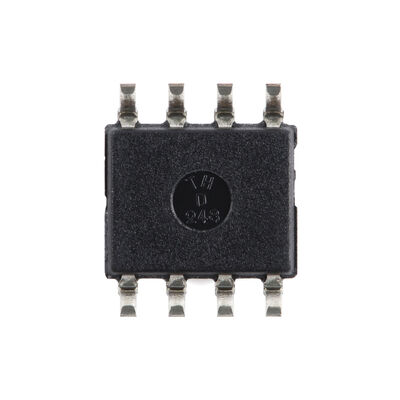

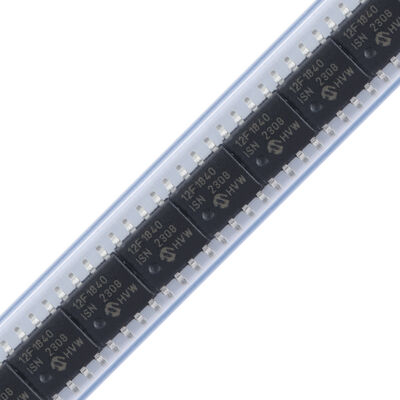

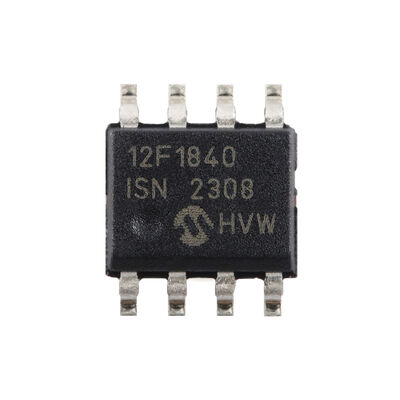

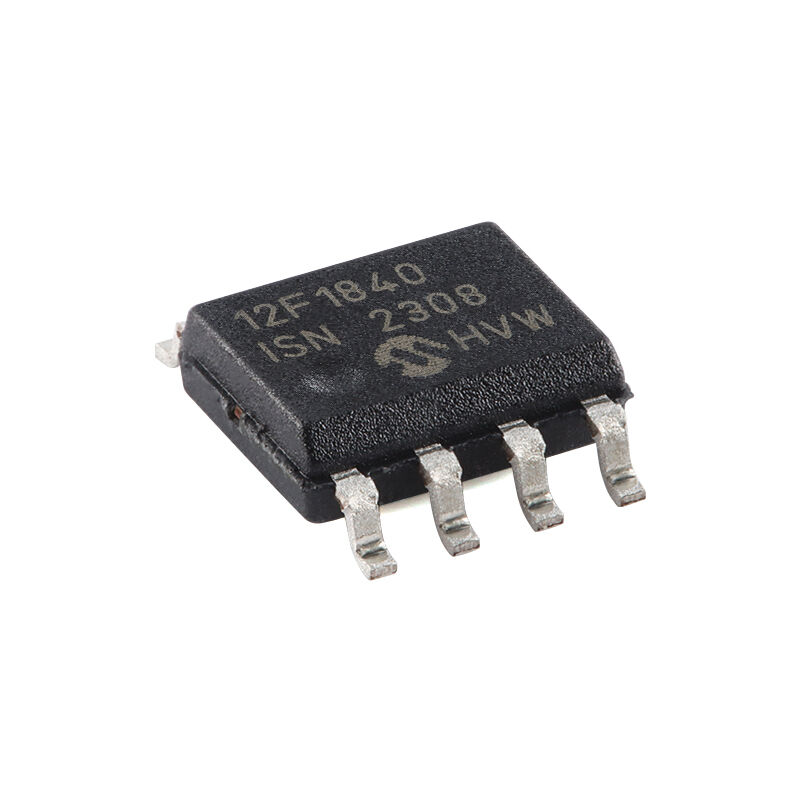

PIC12F1840-I/SN 8-Pin Flash Microcontrollers With XLP Technology

• Analog-to-Digital Converter (ADC) module:
  • 10-bit resolution, 4 channels
  • Conversion available during Sleep
• Analog Comparator module:
  • One rail-to-rail analog comparator
  • Power mode control
  • Software controllable hysteresis
• Voltage Reference module:
  • Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels
  • 5-bit rail-to-rail resistive DAC with positive and negative reference selection

• 5 I/O Pins and 1 Input-Only Pin:
  • High current sink/source 25 mA/25 mA
  • Programmable weak pull-ups
  • Programmable interrupt-on-change pins
• Timer0: 8-Bit Timer/Counter with 8-Bit Prescaler
• Enhanced Timer1:
  • 16-bit timer/counter with prescaler
  • External Gate Input mode
  • Dedicated, low-power 32 kHz oscillator driver
• Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
• Enhanced CCP (ECCP) module:
  • Software selectable time bases
  • Auto-shutdown and auto-restart
  • PWM steering
• Master Synchronous Serial Port (MSSP) with SPI and I2CTM with:
  • 7-bit address masking
  • SMBus/PMBusTM compatibility
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
  • RS-232, RS-485 and LIN compatible
  • Auto-Baud Detect
• Capacitive Sensing (CPS) module (mTouchTM):
  • 4 input channels

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
