PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers

PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers
PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers

Large Image :  PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers

Product Details:
Place of Origin: CN
Brand Name: NXP
Certification: ROHS
Model Number: PCAL6416AHF,128
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers

Description
Product Category:: Interface - I/O Expanders RTC Bus Interface:: I2C；SMBus
Operating Temperature Range (°C): -40℃~+85℃ Supply Voltage (min) (V): 1.65V
Supply Voltage (max) (V): 5.5V Operating Current: -

PCAL6416AHF - 128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expander
Low-voltage translating 16-bit I2C-bus/SMBus I/O expander with interrupt output, reset, and configuration registers.
Key Features
  • I2C-bus to parallel port expander
  • Operating power supply voltage range of 1.65 V to 5.5 V
  • Bidirectional voltage-level translation and GPIO expansion between various voltage combinations
  • Low standby current consumption: 1.5 μA typical at 5 V VDD, 1.0 μA typical at 3.3 V VDD
  • Schmitt trigger action for slow input transition and better switching noise immunity
  • 5 V tolerant I/O ports
  • Active LOW reset input (RESET)
  • Open-drain active LOW interrupt output (INT)
  • 400 kHz Fast-mode I2C-bus
  • Internal power-on reset
  • No glitch on power-up
  • Noise filter on SCL/SDA inputs
  • Latched outputs with 25 mA drive maximum capability for directly driving LEDs
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • ESD protection exceeds JESD 22 standards
Package Options
Type Number Topside Package Mark Name Description Version
PCAL6416AEV L16A VFBGA24 plastic very thin fine-pitch ball grid array package 24 balls; body 3 * 3 * 0.85 mm SOT1199-1
PCAL6416AEX1 16X[1] X2QFN24 plastic, thermal enhanced super thin land grid array or quad flat package no leads; 24 terminals; body 2.0 * 2.0 * 0.35 mm SOT1895-1
PCAL6416AHF L16A HWQFN24 plastic thermal enhanced very very thin quad flat package no leads; 24 terminals; body 4 * 4 * 0.75 mm SOT994-1
PCAL6416APW PCAL6416A TSSOP24 plastic thin shrink small outline package 24 leads; body width 4.4 mm SOT355-1

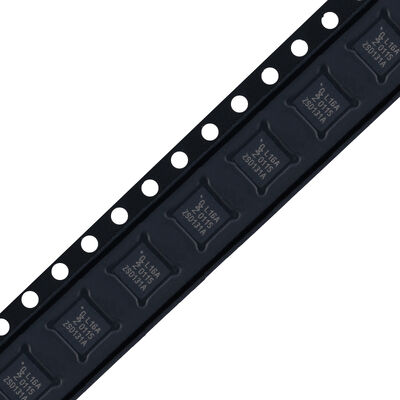

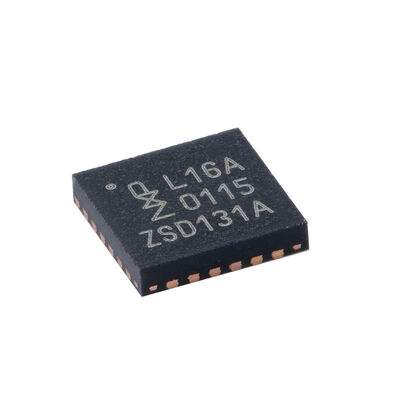

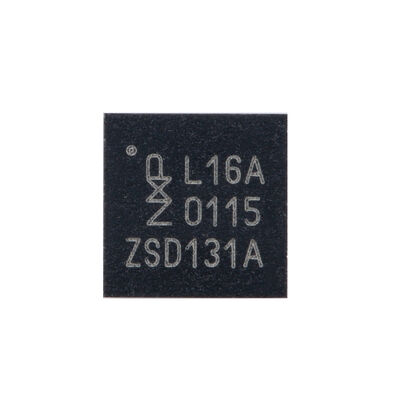

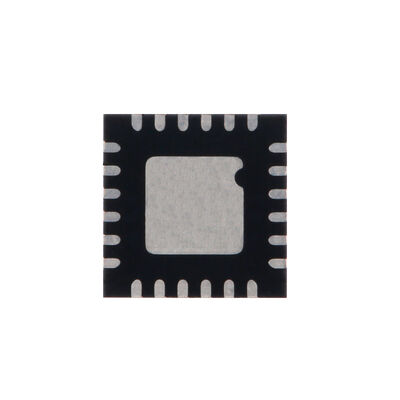

Product Images
PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers 0 PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers 1 PCAL6416AHF,128 Low-voltage Translating 16-bit I2C-bus/SMBus I/O Expanderwith Interrupt Output, Reset, And Configuration Registers 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
