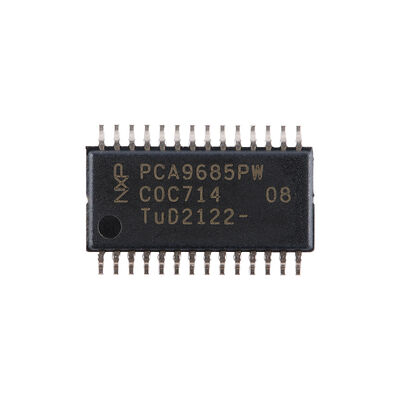

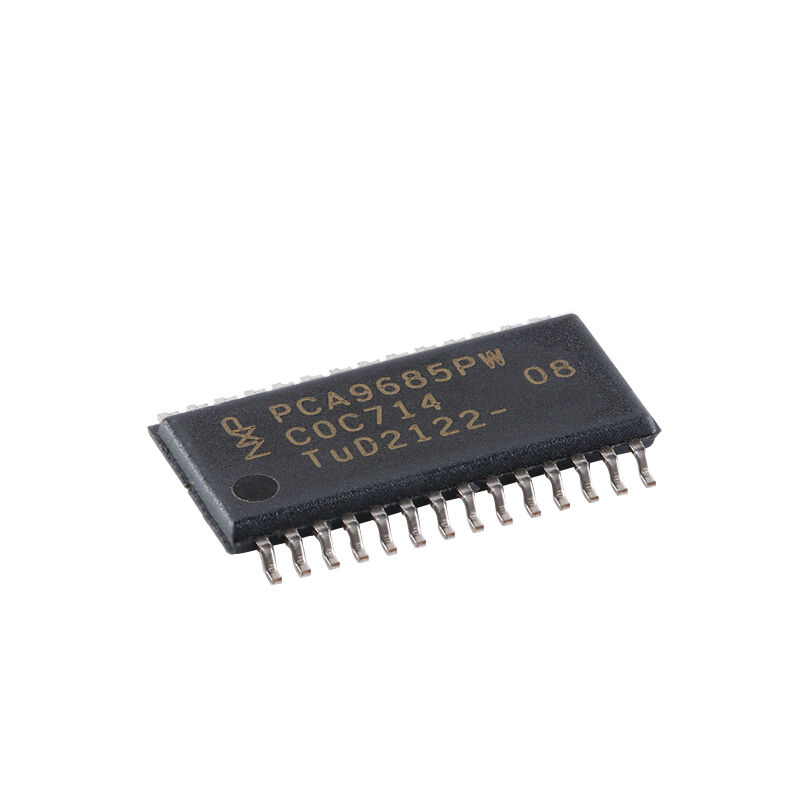

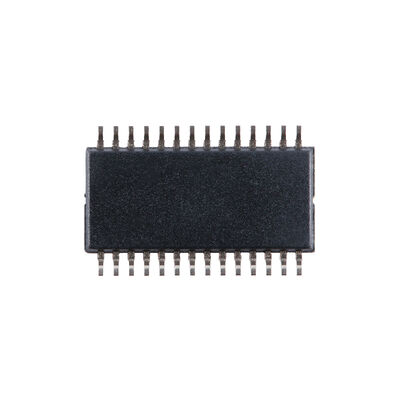

PCA9685PW,118 16-channel, 12-bit PWM Fm+ I2C-bus LED Controller

Large Image : PCA9685PW,118 16-channel, 12-bit PWM Fm+ I2C-bus LED Controller

Product Details:

Place of Origin:	CN
Brand Name:	NXP
Certification:	ROHS
Model Number:	PCA9685PW,118

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

PCA9685PW,118 16-channel, 12-bit PWM Fm+ I2C-bus LED Controller

Description

Product Category::	LED Display Drivers	Package / Case::	TSSOP-28
Output Current::	2.3V	Input Voltage - Max::	5.5 V
Minimum Operating Temperature::	- 40 C	Maximum Operating Temperature::	+ 85 C
Low Level Output Current::	25 MA

PCA9685PW,118 16-channel, 12-bit PWM Fm+ I2C-bus LED Controller

Product Overview

The PCA9685PW,118 is a 16-channel, 12-bit PWM Fm+ I2C-bus LED controller designed for advanced LED driving applications with precise brightness control and flexible configuration options.

Key Features

16 LED drivers with programmable outputs: Off, On, Programmable LED brightness, Programmable LED turn-on time to reduce EMI
1 MHz Fast-mode Plus compatible I2C-bus interface with 30 mA high drive capability on SDA output
4096-step (12-bit) linear programmable brightness per LED output
LED output frequency typically from 24 Hz to 1526 Hz (default 200 Hz refresh rate)
Sixteen totem pole outputs (sink 25 mA and source 10 mA at 5 V) with software programmable open-drain selection
Output state change programmable on Acknowledge or STOP Command
Active LOW Output Enable (OE) input pin with programmable output states
6 hardware address pins supporting up to 62 devices on the same I2C-bus
Hardware LED blinking capability via OE toggling
4 software programmable I2C-bus addresses with group addressing capabilities
Software Reset feature (SWRST General Call) for I2C-bus reset

Package Information

Type Number	Topside Mark	Package Name	Description	Version
PCA9685PW	PCA9685PW	TSSOP28	plastic thin shrink small outline package; 28 leads; body width 4.4 mm	SOT361-1
PCA9685PW/Q900[1]	PCA9685PW	TSSOP28	plastic thin shrink small outline package; 28 leads; body width 4.4 mm	SOT361-1
PCA9685BS	P9685	HVQFN28	plastic thermal enhanced very thin quad flat package; no leads; 28 terminals; body 6 × 6 × 0.85 mm	SOT788-1

Product Images

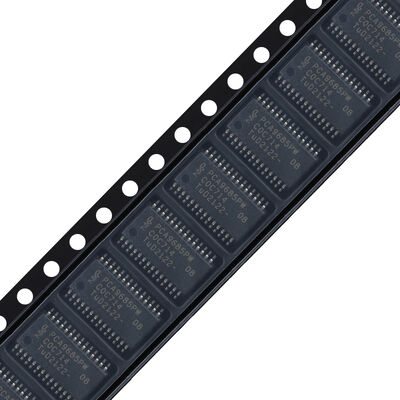

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
