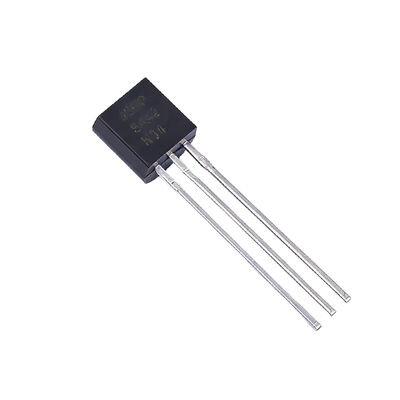

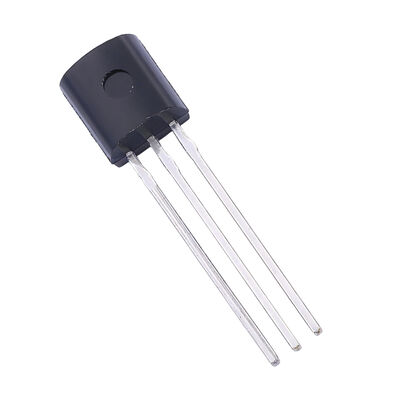

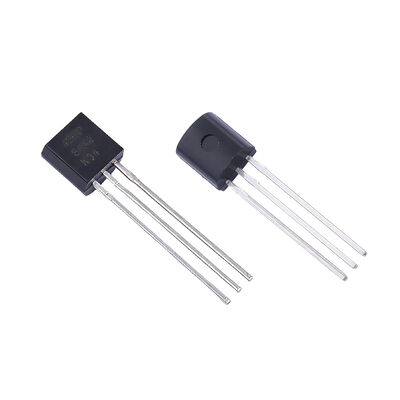

MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package

MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package
MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package

Large Image :  MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package

Product Details:
Place of Origin: CN
Brand Name: onsemi
Certification: rohs
Model Number: MPSA42
Document: _MPSA42.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 1000000
Contact Now Chat Now

MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package

Description
Product Category:: Bipolar Transistors - BJT Technology:: Si
Mounting Style:: Through Hole Package / Case:: TO-92-3
Transistor Polarity:: NPN Configuration:: Single
Highlight:

300V Collector-Base Voltage BJT

,

500mA Collector Current NPN Transistor

,

TO-92-3 Package Bipolar Transistor

MPSA42 Bipolar Transistors - BJT NPN Bipolar Small Signal Transistor
Features
  • These are Pb−Free Devices*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage
MPSA43 VCEO 200 Vdc
MPSA42 300
Collector−Base Voltage
MPSA43 VCBO 200 Vdc
MPSA42 300
Emitter−Base Voltage VEBO 6.0 Vdc
Collector Current − Continuous IC 500 mAdc
Total Device Dissipation
@ TA = 25°C
Derate above 25°C		 PD 625
5.0		 mW
mW/°C
Total Device Dissipation
@ TC = 25°C
Derate above 25°C		 PD 1.5
12		 W
mW/°C
Operating and Storage Junction
Temperature Range		 TJ, Tstg −55 to
+150		 °C
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance,
Junction−to−Ambient		 RJA 200 °C/W
Thermal Resistance,
Junction−to−Case		 RJC 83.3 °C/W

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability

MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package 0 MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package 1 MPSA42 NPN Bipolar Transistor with 300V Collector-Base Voltage 500mA Collector Current in TO-92-3 Package 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
