AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit

AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit
AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit

Large Image :  AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT93C46DN-SH-T
Document: C6499_C0D2958C2C3F034123F82...92.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit

Description
Operating Temperature: -40℃~+85℃ Product Catalog: EEPROM
Interface Type: I2C Storage Capadity: 1Kbit
Clock Frequency (fc): 2MHz Write Cycle Time (Tw): 5ms
Highlight:

Three-Wire Serial EEPROM 1-Kbit

,

AT93C46DN-SH-T EEPROM Chip

,

1-Kbit Serial EEPROM with warranty

AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit
The AT93C46DN-SH-T is a 1-Kbit Three-Wire Serial EEPROM offering reliable non-volatile memory storage with flexible organization options and industrial-grade performance.
Key Features
  • Low-voltage operation: VCC = 1.8V to 5.5V
  • User-selectable internal organization as 128 x 8 (1K) or 64 x 16 (1K)
  • Non-selectable internal organization as 64 x 16 (1K) for AT93C46E variant
  • Industrial temperature range: -40°C to +85°C
  • Three-wire serial interface
  • 2 MHz clock rate (5V)
  • Self-timed write cycle within 5 ms maximum
  • High reliability: 1,000,000 write cycles endurance and 100-year data retention
  • Green package options (lead-free/halide-free/RoHS compliant)
  • Die sale options: wafer form and tape and reel
Device Variants
Device Package Package Drawing Code Package Option Organization Shipping Carrier Option Device Grade
AT93C46DN-SH-B SOIC SN S User Selectable Bulk (Tubes) Industrial Temperature (-40°C to 85°C)
AT93C46EN-SH-T SOIC SN S 16 X 64 Tape and Reel
AT93C46E-TH-B TSSOP ST T 16 X 64 Bulk (Tubes)
AT93C46D-TH-T TSSOP ST T User Selectable Tape and Reel
AT93C46DY6-YH-T UDFN Q4B Y User Selectable Tape and Reel
AT93C46DY6-YH-E UDFN Q4B Y User Selectable Extended Qty., Tape and Reel
AT93C46E-PU PDIP P P 16 X 64 Bulk (Tubes)
AT93C46DU3-UU-T VFBGA 8U3-1 U User Selectable Tape and Reel

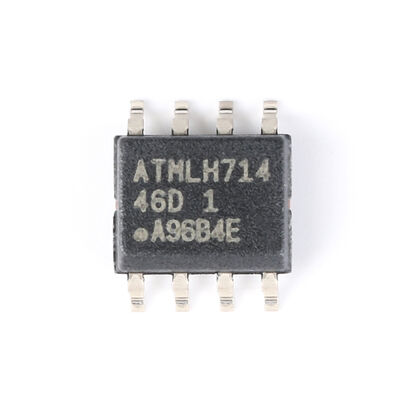

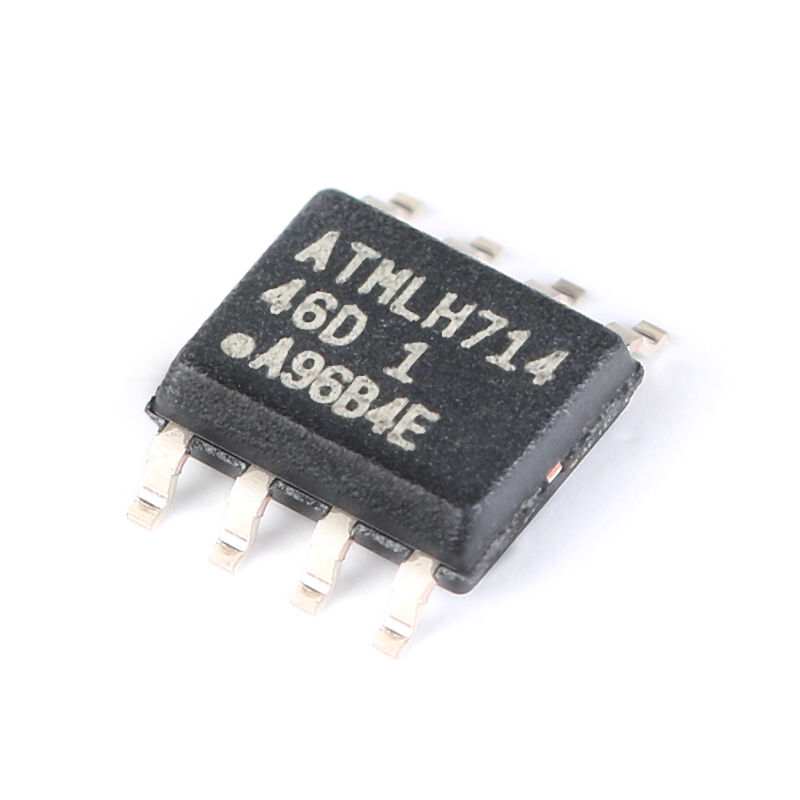

Product Images
AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit 0 AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit 1 AT93C46DN-SH-T Three-Wire Serial EEPROM 1-Kbit 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
